Description

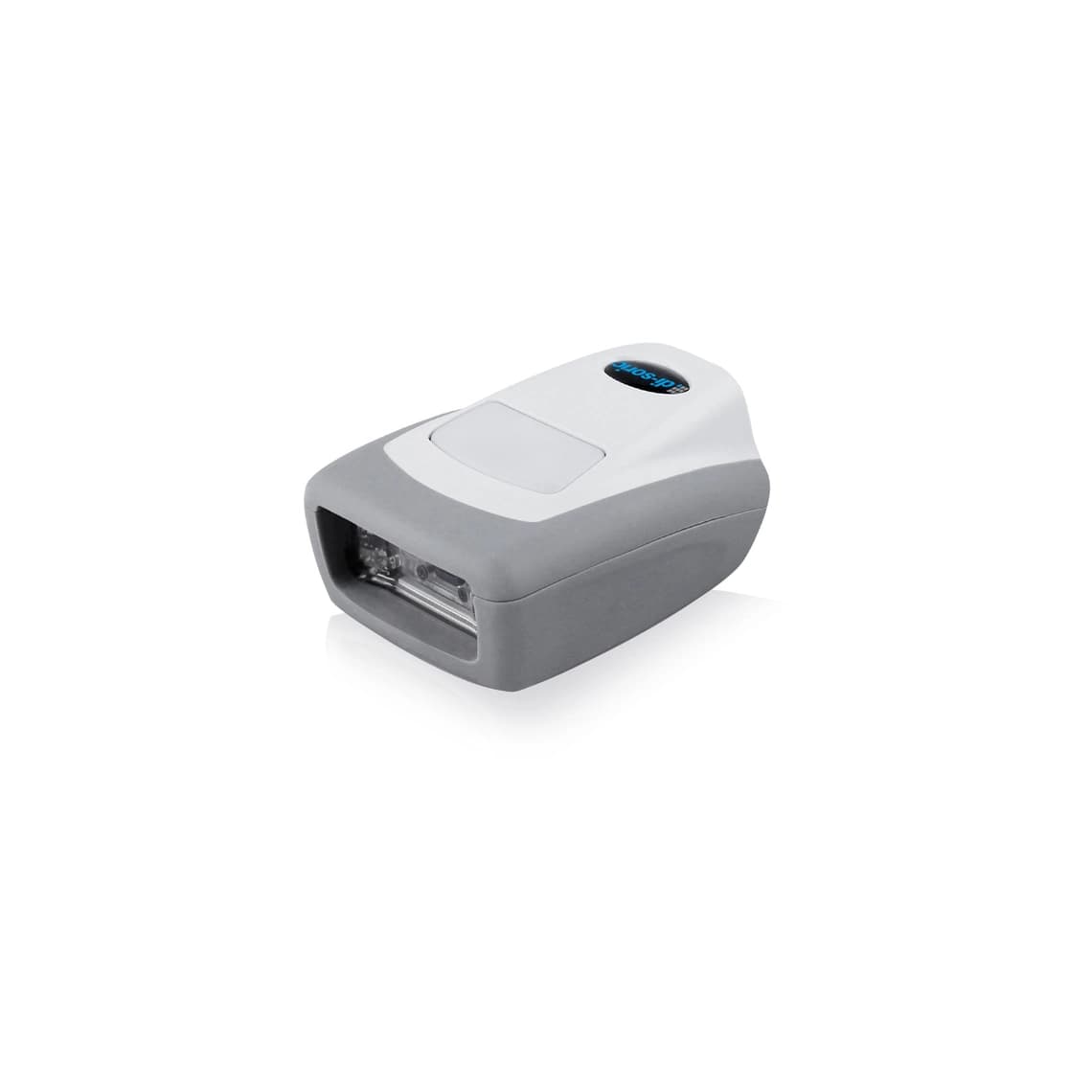

Handheld reader ID 10

ID-10-IM3-2-US
Article Number: 211080

The ID-10 is a cabled barcode reader with very compact dimensions and a high level of reading performance. The dual field optics enable the user to quickly scan both wide 1D barcodes and small, dense 2D barcodes. Users can use the ID-10 as a handheld or mounted in a fixed manner and choose for a high degree of efficiency between continuous scanning or moving detection. For fixed mounting, the ID-10 has threaded brass inserts for simple installation. With its high speed, omnidirectional code reading, extremely low energy consumption and manual or automatic resolution, the ID-10 is the ideal barcode reader for environments with a high degree of utilization, and distinguishes itself through high decoding performance and a very attractive price/performance ratio.

Fast, omnidirectional recognition of 1D, 2D codes and postal barcodes
Manual or automatic trigger
Fatigue-free work thanks to its low weight and handy format
Reading feedback using LED and audible tone

Collapse all
Service voltage5 V DC
Housing dimensions30 x 67 x 52 mm
Housing length67 mm
Housing height30 mm
Housing width52 mm
Housing materialPlastic
Weight55 g
NoteAdditional components are required for operation
Code type - 1D-Codes (barcodes)BC 412, Code 11, Codabar, Code 128, Code 39, Code 32, Pharmacode, GSI DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN
Code type - 2D-CodesAztec Code, Data Matrix, QR code, Micro QR Code, QR Model 1, Han Xin, Maxi Code, Data Matrix Rectangular Extension
Code type - Stacked codesPDF 417, Micro PDF, Code 49, Grid Matrix, Codablock F, GS1 Composite (CC-A/CC-B/CC-C)
InterfaceRS232 (In operation with ID-K-SD/DCJ-RJ50-2) USB (In operation with ID-K-M12/U-2) USB-A (In operation with ID-K-RJ50/U-2)
Image sensorCMOS
Resolution960 x 640 Pixel
Position scanner to codeTilt 180°, Pitch ± 65°, Skew ± 60°
Ambient temperature during operation-20 … +55 °C
ConnectionRJ 50
