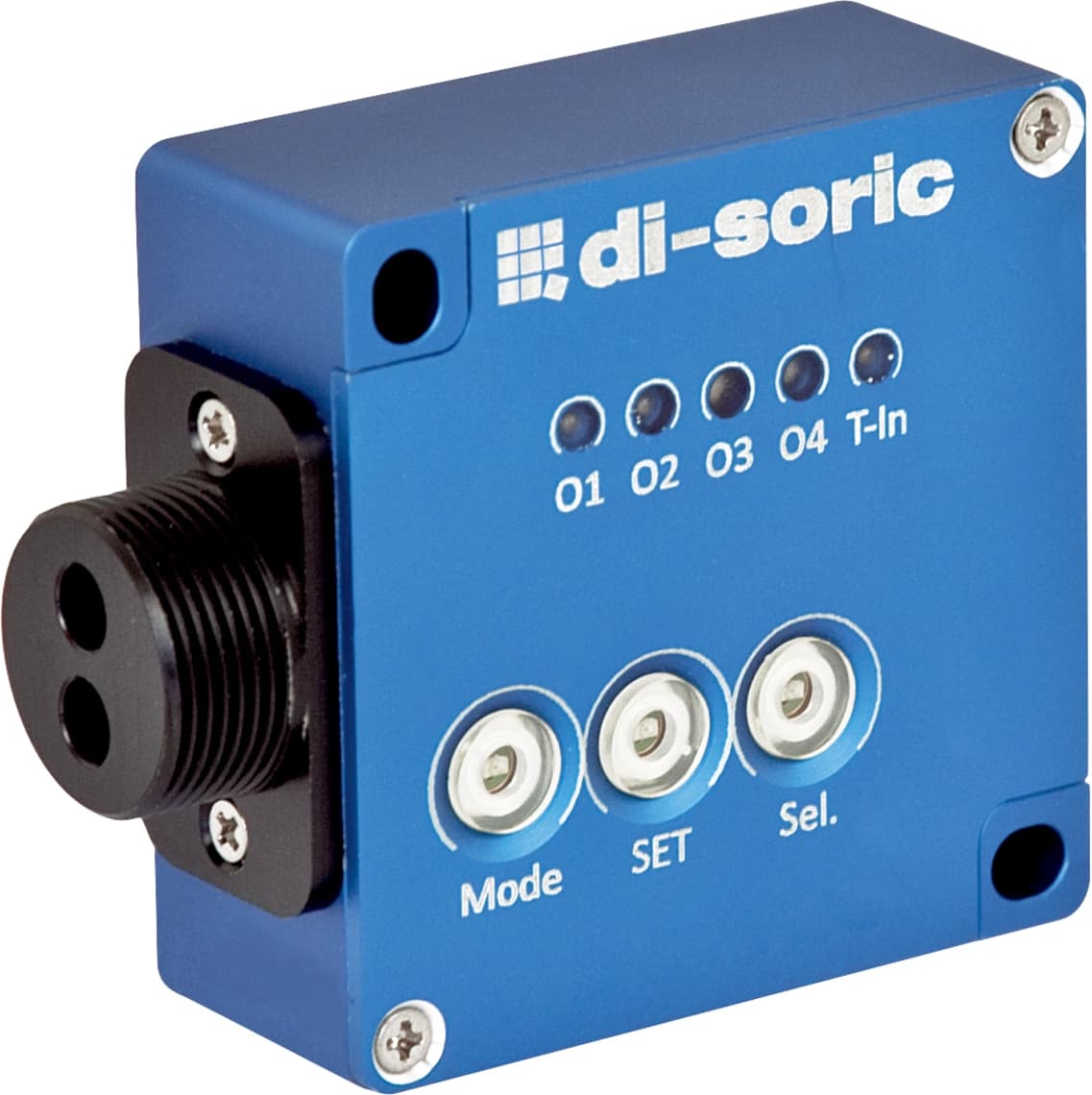

FSB 50 M G3-B8 M18 x 1 Optical sensors

Di-soric Optical sensors Industrial Automation - FSB 50 M G3-B8 M18 x 1 Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about FSB 50 M G3-B8 M18 x 1 Optical sensors

Description

Color sensor

FSB 50 M G3-B8
Article Number: 207787

The FS-50 color sensor with a fiber optic connection or fixed optics can store up to 100 colors. Colors and tolerances are learned via a keypad with Multiteach. Some variants of the FS-50 series can be reproducibly configured via PC software.
Extensive range of fiber optic cables
4-channel, teach-in for many standard applications
Very short response time
Adjustable color tolerance
Distinction of smallest shade nuances
High ambient light compensation
Integrated long-term stability
Status display via LEDs
Key lock function

Collapse all
Service voltage18 … 28 V DC
No-load current (max.)500 mA
Housing dimensions50 x 50 x 21 mm
Housing length21 mm
Housing height50 mm
Housing width50 mm
Fiber-optic cable connection / fixed opticsM18 x 1
Housing materialAluminum (Anodized)
Protection classIII, operation on protective low voltage
Operating modeContinuous External triggering
Color memory internal4
Number of measuring channels1
Color channels of sensor4 (Teachable via keys)
Scanning blockLock (+24 V DC)
Color space modeL*a*b* (Body colors)
Detection modesMinimum spacing (Assignment of the measured color to the stored color with the smallest color difference) Check sphere (Check whether the measured color is within a specified tolerance)
Trigger inputTRG (+24 V DC)
Switching outputpnp+npn (4x), < 100 mA
Voltage drop (max.)2 V
Pulse stretching0 ms / 50 ms (selectable)
Light sourceLED
ColorWhite
Light spot sizeDependent on focus optics
Color resolutionDE Lab < 1
Ambient light compensationdynamic
RangeDependent on fiber-optic cable
Switching hysteresis (max.)10 %
Tolerance ranges5 selectable by keys
Operating elements3
DisplayLED (Channel state (4x), programming (5x))
Response time / scanning frequency10 ms / 100 Hz or 1 ms / 1,000 Hz, parametrierbar
Ambient temperature during operation-10 … +55 °C
Protection typeIP 54
ConnectionConnector, M9, 8-pin
