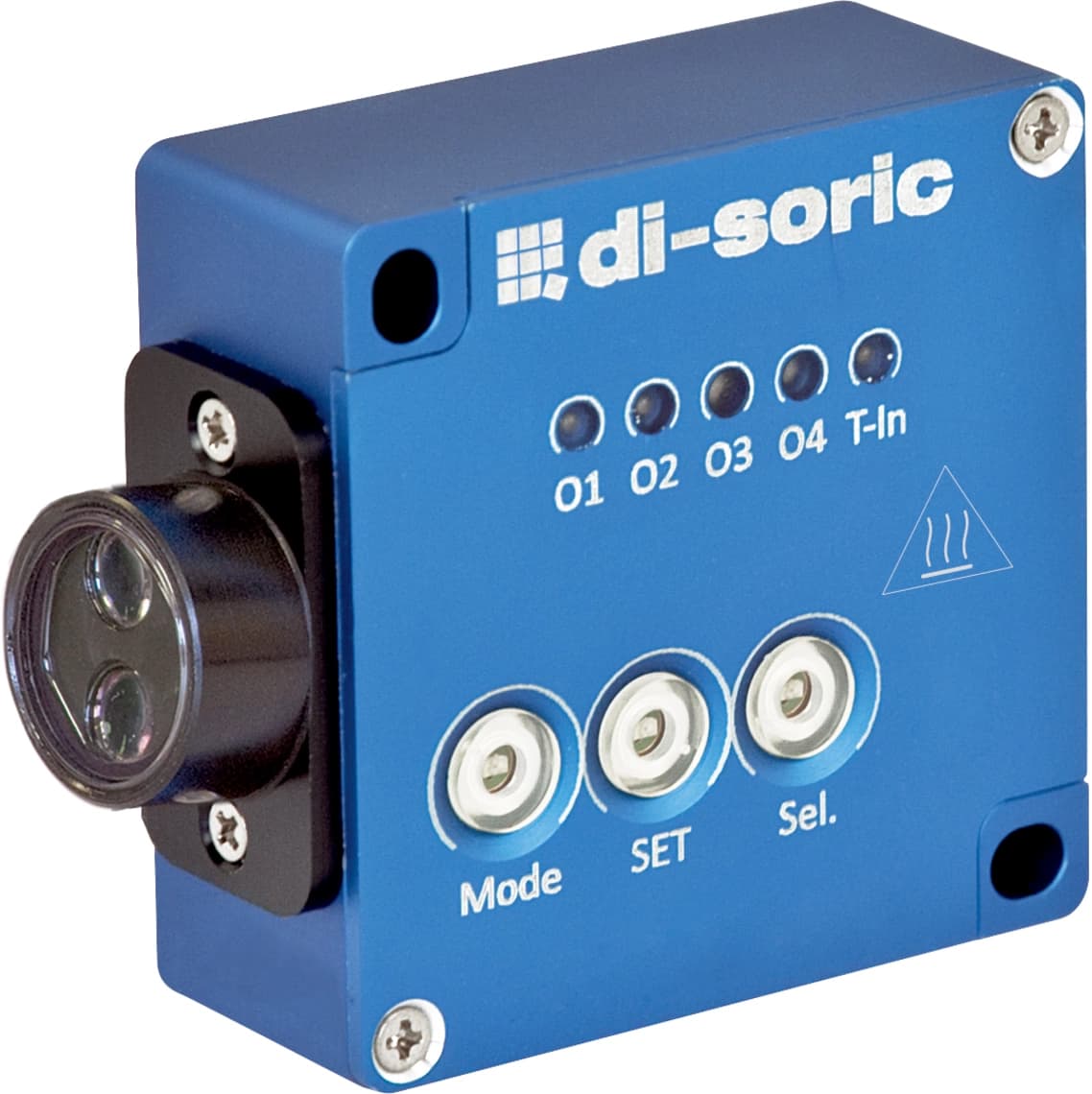

FSB 50 M 60 G3-B8 Fixed optics Optical sensors

Di-soric Optical sensors Industrial Automation - FSB 50 M 60 G3-B8 Fixed optics Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about FSB 50 M 60 G3-B8 Fixed optics Optical sensors

Description

Color sensor

FSB 50 M 60 G3-B8
Article Number: 207788

The FS-50 color sensor with a fiber optic connection or fixed optics can store up to 100 colors. Colors and tolerances are learned via a keypad with Multiteach. Some variants of the FS-50 series can be reproducibly configured via PC software.
Fixed optics, large range
4-channel, teach-in for many standard applications
Very short response time
Adjustable color tolerance
Distinction of smallest shade nuances
High ambient light compensation
Integrated long-term stability
Status display via LEDs
Key lock function

Collapse all
Service voltage18 … 28 V DC
No-load current (max.)500 mA
Housing dimensions50 x 50 x 21 mm
Housing length21 mm
Housing height50 mm
Housing width50 mm
Fiber-optic cable connection / fixed opticsFixed optics
Housing materialAluminum (Anodized)
Protection classIII, operation on protective low voltage
Operating modeContinuous External triggering
Color memory internal4
Number of measuring channels1
Color channels of sensor4 (Teachable via keys)
Scanning blockLock (+24 V DC)
Color space modeL*a*b* (Body colors)
Detection modesMinimum spacing (Assignment of the measured color to the stored color with the smallest color difference) Check sphere (Check whether the measured color is within a specified tolerance)
Trigger inputTRG (+24 V DC)
Switching outputpnp+npn (4x), < 100 mA
Voltage drop (max.)2 V
Pulse stretching0 ms / 50 ms (selectable)
Light sourceLED
ColorWhite
Light spot size5 … 10 mm
Color resolutionDE Lab < 1
Ambient light compensationdynamic
Range30 … 60 mm
Switching hysteresis (max.)10 %
Tolerance ranges5 selectable by keys
Operating elements3
DisplayLED (Channel state (4x), programming (5x))
Response time / scanning frequency10 ms / 100 Hz or 1 ms / 1,000 Hz, parametrierbar
Ambient temperature during operation-10 … +55 °C
Protection typeIP 54
ConnectionConnector, M9, 8-pin
