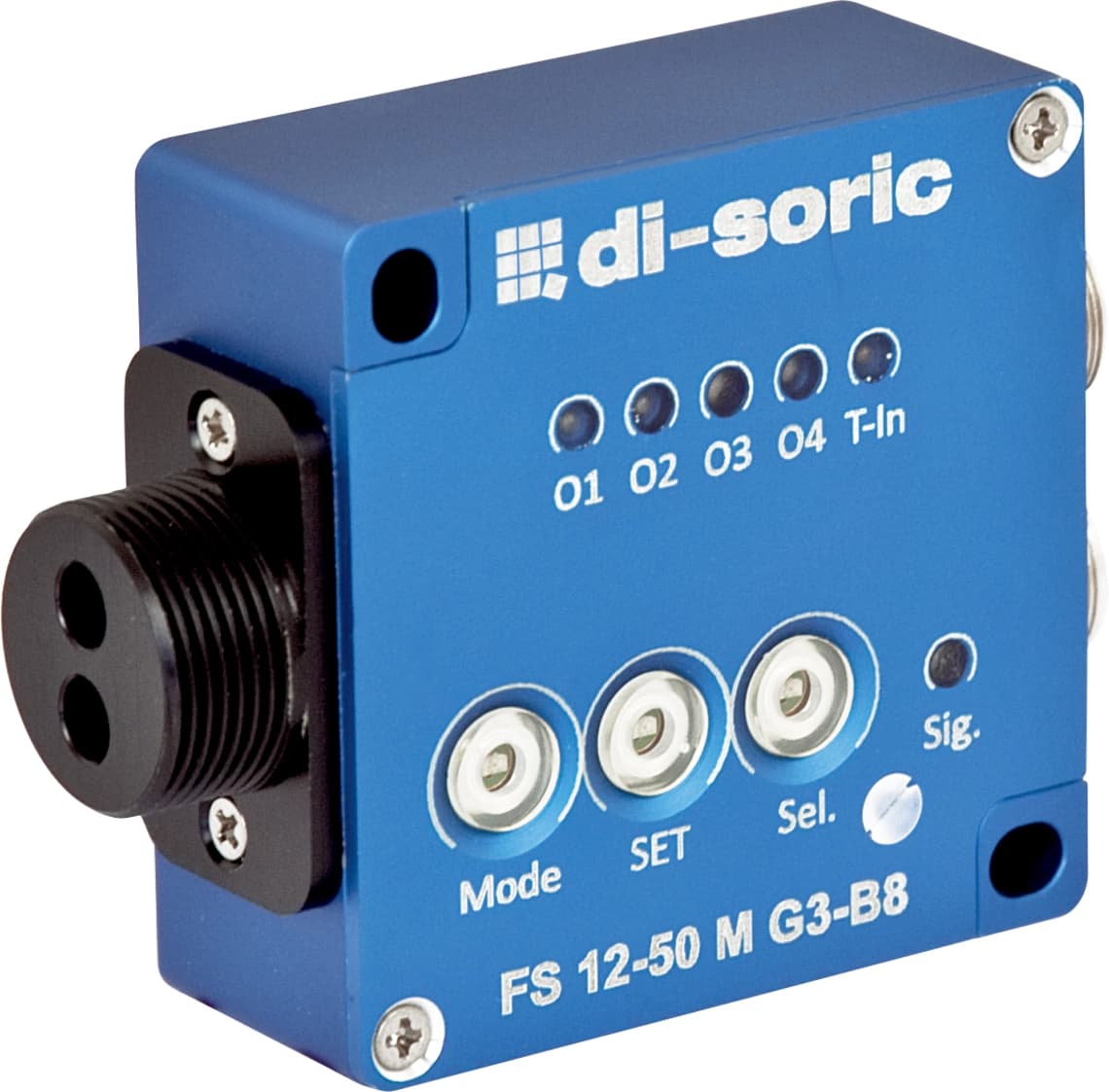

FS 12-50 M G3-B8 M18 x 1 Optical sensors

Name: FS 12-50 M G3-B8 M18 x 1 Optical sensors
Brand: Di-soric
SKU: fs-12-50-m-g3-b8-m18-x-1-optical-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about FS 12-50 M G3-B8 M18 x 1 Optical sensors

Description

Color sensor

FS 12-50 M G3-B8
Article Number: 205450

The FS-50 color sensor with a fiber optic connection or fixed optics can store up to 100 colors. Colors and tolerances are learned via a keypad with Multiteach. Some variants of the FS-50 series can be reproducibly configured via PC software.
4-channel, teach-in for many standard applications
15 channels with binary coding
Very short response time
Adjustable color tolerance
High ambient light compensation
Further settings possible via interface
Integrated long-term stability
Distinction of smallest shade nuances
Parameterization by keys and software

Collapse all

Service voltage18 … 28 V DC

No-load current (max.)500 mA

Housing dimensions50 x 50 x 21 mm

Housing length21 mm

Housing height50 mm

Housing width50 mm

Fiber-optic cable connection / fixed opticsM18 x 1

Housing materialAluminum (Anodized)

Protection classIII, operation on protective low voltage

Operating modeContinuous External triggering Externally triggered color sequence detection External teaching Self-luminous objects Body colors Each color can be assigned to any output

Color memory internal100

Number of measuring channels1

Color channels of sensor4 (Teachable via keys) 15 (Evaluation using software, with binary coding)

Color space modeXYZ / xyY / u’v’L* / L*a*b* / xyl (Body colors) XYZ / xyY / u’v’L / xyl (Self-luminous objects)

Detection modesMinimum spacing (Assignment of the measured color to the stored color with the smallest color difference) Check sphere (Check whether the measured color is within a specified tolerance) Check cylinder (Check whether the measured color is within a specified tolerance)

Trigger inputTRG 0

Teach inputTRG 1

Switching outputpnp+npn (4x), NO/NC

Voltage drop (max.)2 V

InterfaceRS232

Pulse stretching0 … 65535 ms adjustable

Switching output codingbinary coded = 15 switching conditions (4x) pnp + npn (4x)

Light sourceLED (can be switched off)

ColorWhite

Light spot sizeDependent on focus optics

Color resolutionDE Lab < 1

Ambient light compensationdynamic, can be switched off

RangeDependent on fiber-optic cable

Switching hysteresis (max.)0 … 255 % (10 % default)

Tolerance ranges5 selectable by keys / using software

Operating elements3

DisplayLED (Channel state (4x), programming (5x))

Response time / scanning frequency0.2 ms (bei 5.000 Hz: bis zu 100 Farben auswertbar) 0.1 ms (bei 10.000 Hz: bis zu 30 Farben auswertbar) 0.05 ms (bei 20.000 Hz: 3 Farben auswählbar)

Response time0.05 ms

Release time< 20 000 Hz

Ambient temperature during operation-10 … +55 °C

Protection typeIP 54

ConnectionConnector, M9, 8-pin
