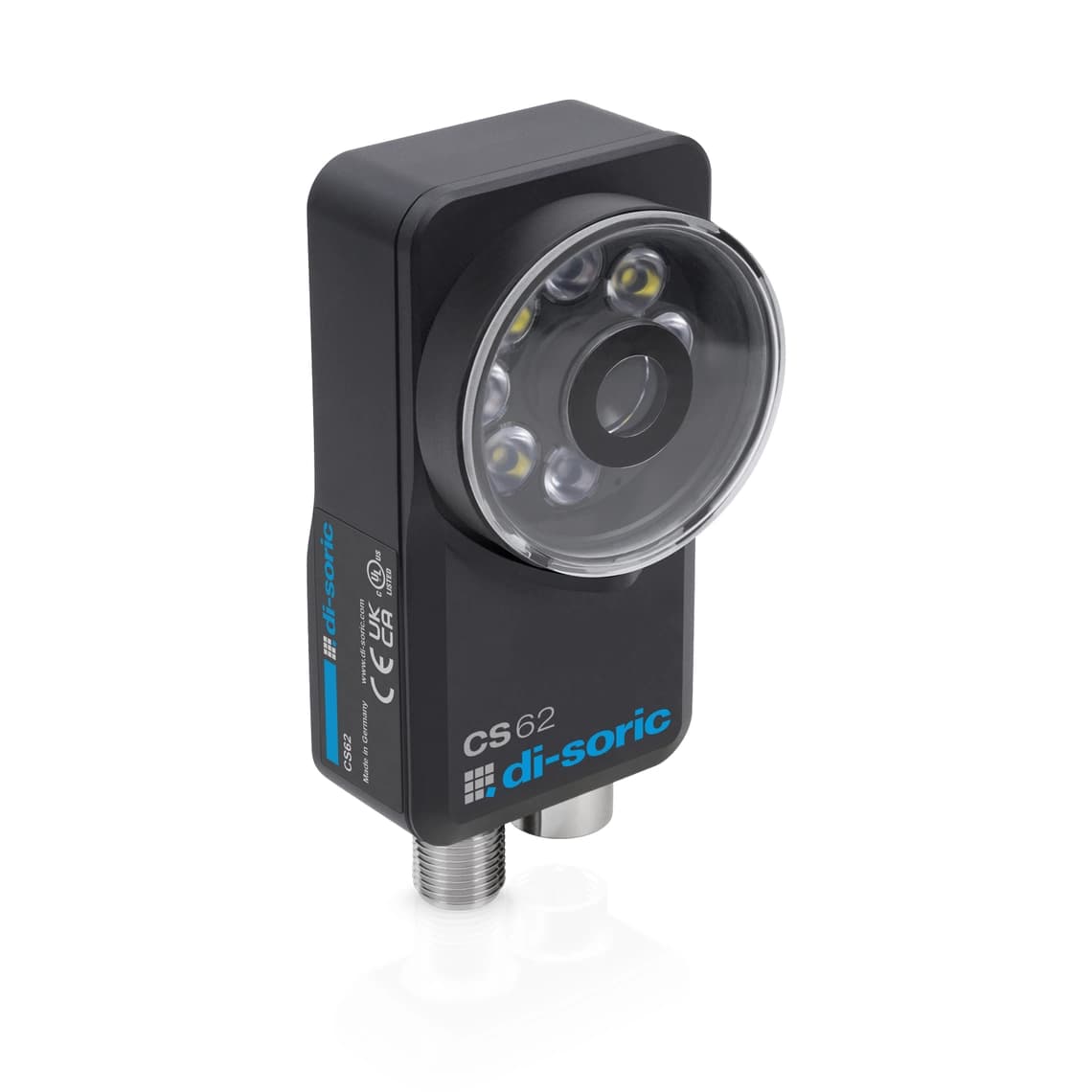

CS62-BM38-EP15/400 CS-62 Vision sensors

Name: CS62-BM38-EP15/400 CS-62 Vision sensors
Brand: Di-soric
SKU: cs62-bm38-ep15400-cs-62-vision-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about CS62-BM38-EP15/400 CS-62 Vision sensors

Description

Vision Sensor CS-62

CS62-BM38-EP15/400
Article Number: 215211

The CS-62 Vision sensor impresses with up to four times the performance, setting new standards. Like its predecessor, it offers easy lens changes and integrated lighting for excellent image quality in terms of distance, field of view and resolution. Thanks to increased computing power, the CS-62 Vision sensor is ideal for more complex applications and larger inspection jobs. Expandable tools and flexible software options make it a future-proof solution for the highest demands at the smart camera level.

Localization, Parts recognition, Counting, Measurement
Upgrade option: Reading codes, plain text and smart licenses
The specialist, compact and high-performance
High power LED illumination in red and white
Flexible and productive Software nVision-i
Parameter changes via linked Profinet inputs during execution
Simple & intuitive parameterization
Flexible working distances of 50 - 2,000 mm by changing lenses

Collapse all

Service voltage18 … 30 V DC

No-load current (max.)1000 mA (24 V DC)

Insulation voltage endurance500 V

Housing materialAluminum (Black, Anodized)

MaterialPMMA (Window / optics)

Lens connectionS-mount

Weight185 g

Protection classIII, operation on protective low voltage

Risk group (DIN EN 62471)Risk group 1

ApprovalsUL

ModelCS 62

DesignCuboid design

Sensor typeSONY IMX296LLR

Inspection tasksLocalization, Parts recognition, Counting, Measurement

Shutterglobal

Scope of deliveryCS62-BM38-EP15/400, O-S1-S-080-40

Internal lightsHigh power lighting white and red can be switched via software

Switching outputPush-pull, 100 mA

Switching output number4 (programmable, 1 (Ready))

Voltage drop (max.)2 V

InterfaceDigital Input/Output

ProtocolsTCP/IP, FTP/SFTP, Profinet

ColorRed / white switchable (internal)

Focal length8 mm (exchangeable S-mount lens)

Optical format1/2.9"

Resolution1456 x 1088 Pixel

Working distance50.0 … 2000 mm

DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger

FPS - Frames Per Second (max.)30 images/second

Flash length< 2 ms

Ambient temperature during operation0 … +50 °C

Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms

Protection typeIP 67

ConnectionConnector, M12, 12-pin (A-coded)

Connection 2Socket, M12, 8-pin (X-coded)

CableConnection cables max. 25 m
