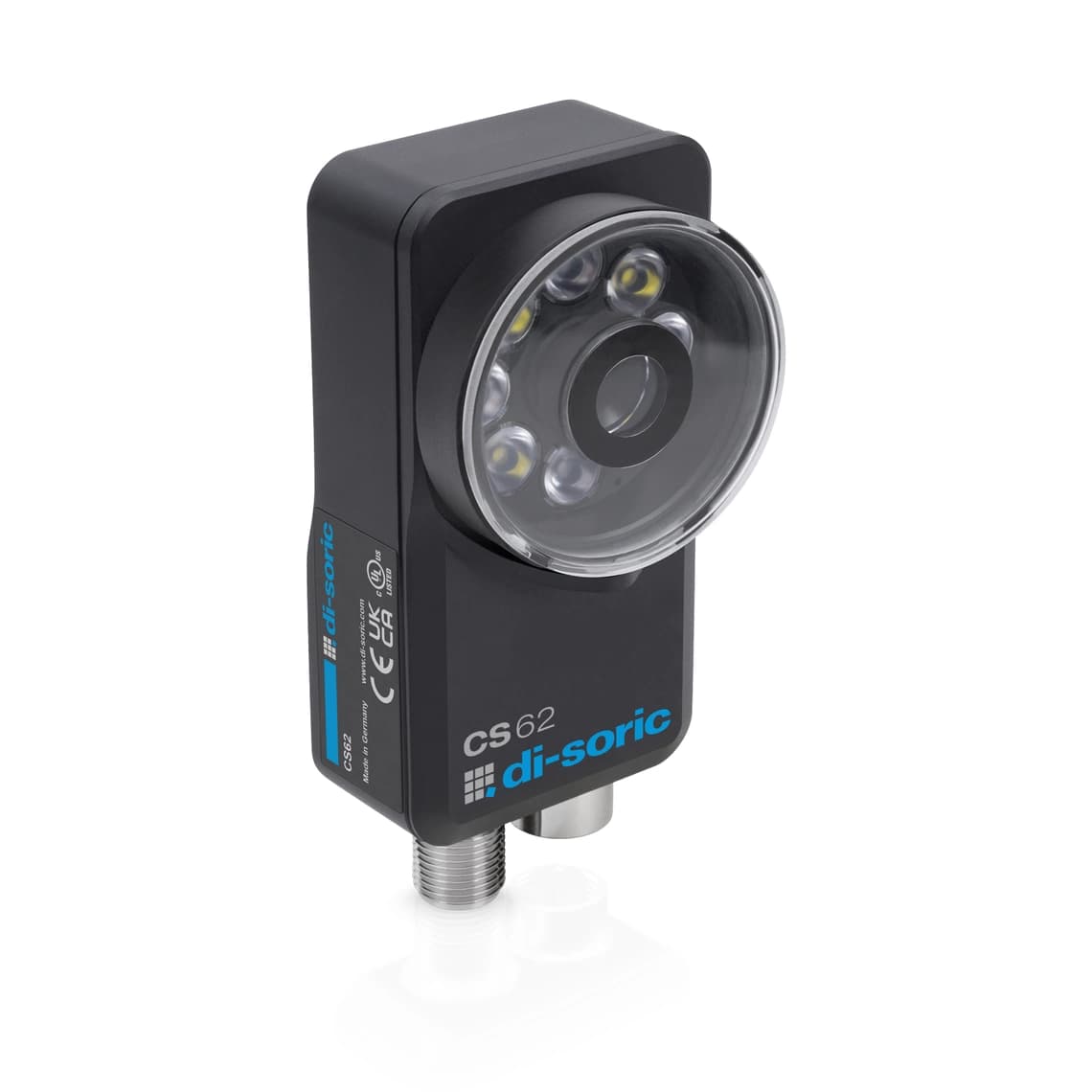

CS62-BM38-EP15/300 CS-62 Vision sensors

Di-soric Vision sensors Industrial Automation - CS62-BM38-EP15/300 CS-62 Vision sensors

CS62-BM38-EP15/300 CS-62 Vision sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about CS62-BM38-EP15/300 CS-62 Vision sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)1000 mA (24 V DC)
Insulation voltage endurance500 V
Housing materialAluminum (Black, Anodized)
MaterialPMMA (Window / optics)
Lens connectionS-mount
Weight185 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
ModelCS 62
DesignCuboid design
Sensor typeSONY IMX296LLR
Inspection tasksLocalization, Parts recognition, Counting
Shutterglobal
Scope of deliveryCS62-BM38-EP15/300, O-S1-S-080-40
Internal lightsHigh power lighting white and red can be switched via software
Switching outputPush-pull, 100 mA
Switching output number4 (programmable, 1 (Ready))
Voltage drop (max.)2 V
InterfaceDigital Input/Output
ProtocolsTCP/IP, FTP/SFTP, Profinet
ColorRed / white switchable (internal)
Focal length8 mm (exchangeable S-mount lens)
Optical format1/2.9"
Resolution1456 x 1088 Pixel
Working distance50.0 … 2000 mm
DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)30 images/second
Flash length< 2 ms
Ambient temperature during operation0 … +50 °C
Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection typeIP 67
ConnectionConnector, M12, 12-pin (A-coded)
Connection 2Socket, M12, 8-pin (X-coded)
CableConnection cables max. 25 m
