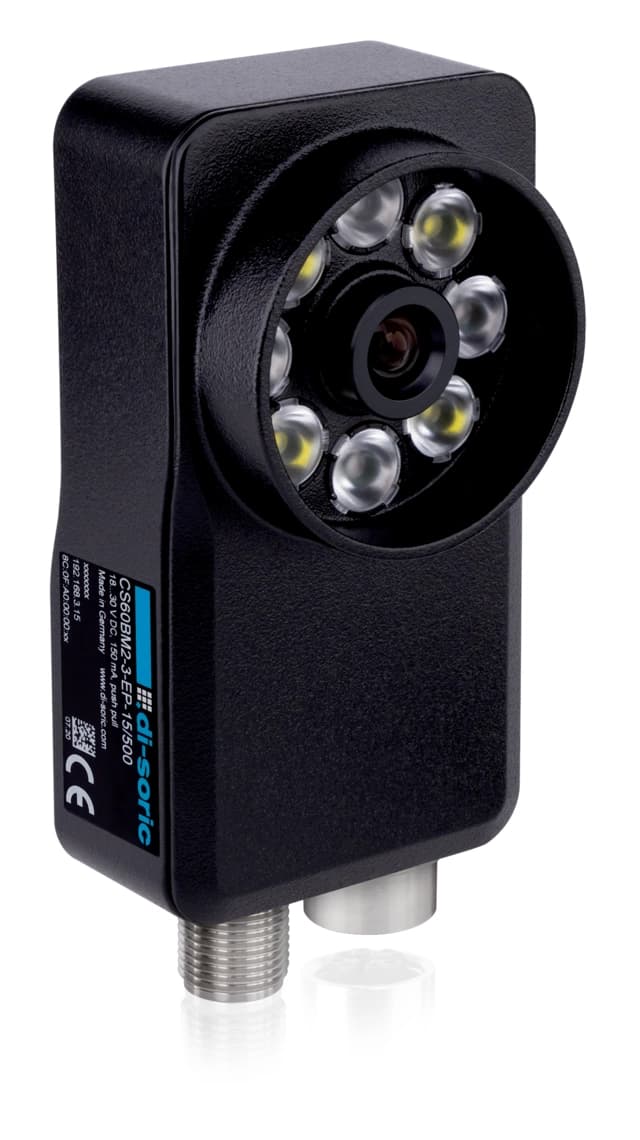

CS60-BM38-EP15/300 CS-60 Vision sensors

Name: CS60-BM38-EP15/300 CS-60 Vision sensors
Brand: Di-soric
SKU: cs60-bm38-ep15300-cs-60-vision-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about CS60-BM38-EP15/300 CS-60 Vision sensors

Description

Vision Sensor CS-60

CS60-BM38-EP15/300
Article Number: 212911

The CS-60 Vision sensor offers excellent flexibility for maximum productivity. Easy lens changing and integrated illumination create excellent images with respect to distance, field of view and resolution. Tools and software can be extended and adjusted.

Localization, Parts recognition, Counting
Upgrade option: Measure & read 1D and 2D codes
The specialist, compact and high-performance
High power LED illumination in red and white
Flexible and productive Software nVision-i
Parameter changes via linked Profinet inputs during execution
Simple & intuitive parameterization
Flexible working distances of 50 - 2,000 mm by changing lenses

Collapse all

Service voltage18 … 30 V DC

No-load current (max.)1000 mA (24 V DC)

Insulation voltage endurance500 V

Housing length34 mm

Housing height85 mm

Housing width45 mm

Housing materialDie-cast zinc (Black, powder-coated)

MaterialPMMA (Window / optics)

Lens connectionS-mount

Weight265 g

Protection classIII, operation on protective low voltage

Risk group (DIN EN 62471)Risk group 1

ApprovalsUL

ModelCS 60

DesignCuboid design

Sensor typeSONY IMX273

NoteEtherNet/IP from nVision-i 24.1

Inspection tasksLocalization, Parts recognition, Counting

Shutterglobal

Scope of deliveryCS60-BM38-EP15/300, O-S1-S-080-40, CS60-WINDOW

Internal lightsHigh power lighting white and red can be switched via software

Switching outputPush-pull, 100 mA

Switching output number4 (programmable, 1 (Ready))

Voltage drop (max.)2 V

InterfaceEthernet Digital Input/Output

ProtocolsTCP/IP, FTP/SFTP, Profinet, EtherNet/IP

ColorRed / white switchable (internal)

Focal length8 mm (exchangeable S-mount lens)

Optical format1/2.9"

Resolution1456 x 1088 Pixel

Working distance50.0 … 2000 mm

DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger

FPS - Frames Per Second (max.)30 images/second

Flash length< 2 ms

Ambient temperature during operation0 … +50 °C

Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms

Protection typeIP 67

ConnectionConnector, M12, 12-pin (A-coded)

Connection 2Socket, M12, 8-pin (X-coded)

CableConnection cables max. 25 m
