BEK-R70/120-G5TI-IBS-CLR 18 … 35 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-R70/120-G5TI-IBS-CLR 18 … 35 V DC (Supply Class 2) Lighting for machine vision

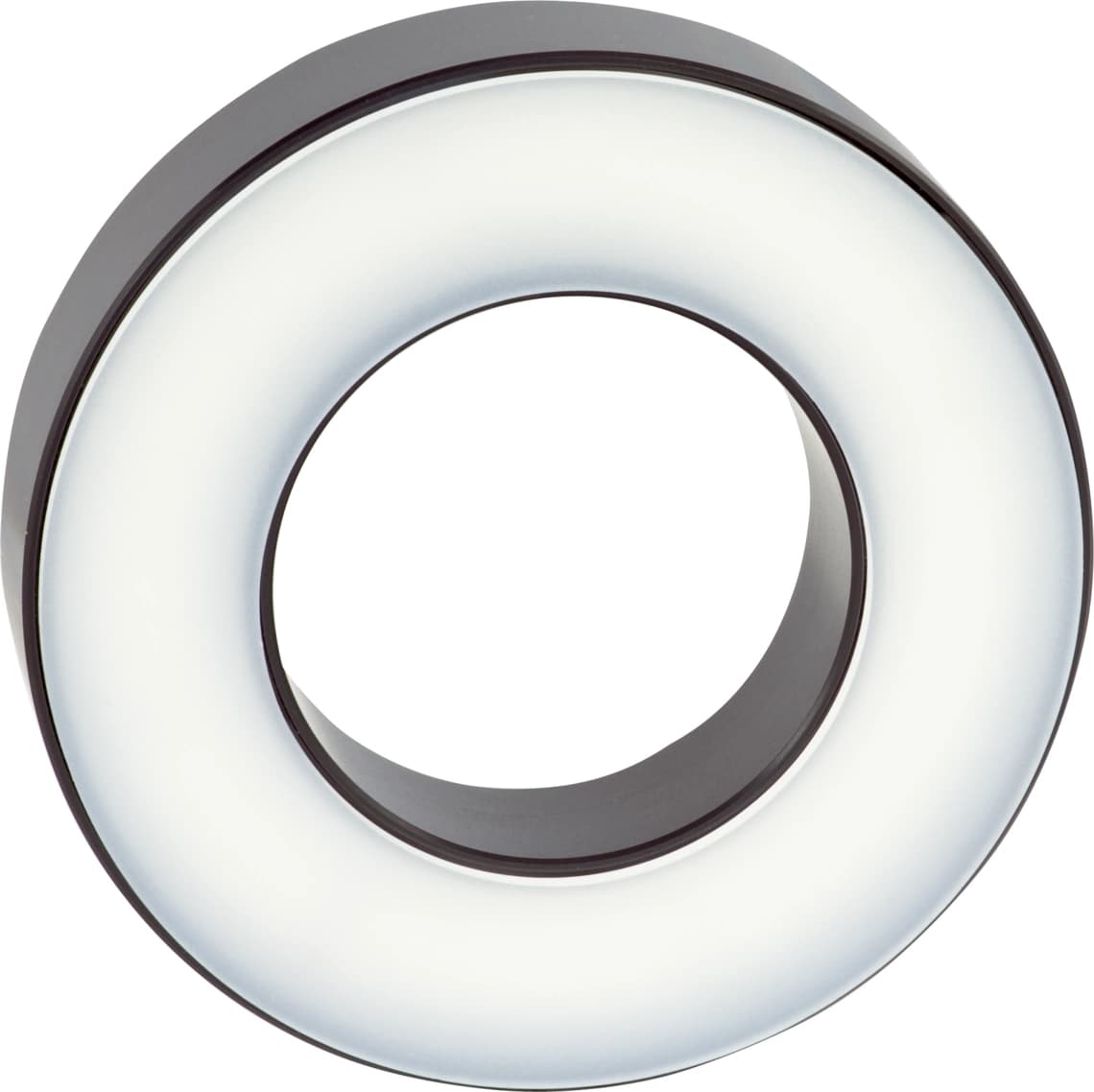

BEK-R70/120-G5TI-IBS-CLR 18 … 35 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-R70/120-G5TI-IBS-CLR 18 … 35 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage18 … 35 V DC (Supply Class 2)
No-load current (max.)560 mA (18 V DC)
Power10.0 W (24 V DC)
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 70 / Ø 130 mm (Diameter)
Housing materialAluminum (Anodized)
MaterialPMMA, clear (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorWhite (clear)
Wavelength6500 K
Deflection angle FWHM120°
Light intensity12.5 kLx (100.0 mm) 4.50 kLx (200.0 mm) 0.900 kLx (500.0 mm)
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
