Description

Spotlight with switchable constant light

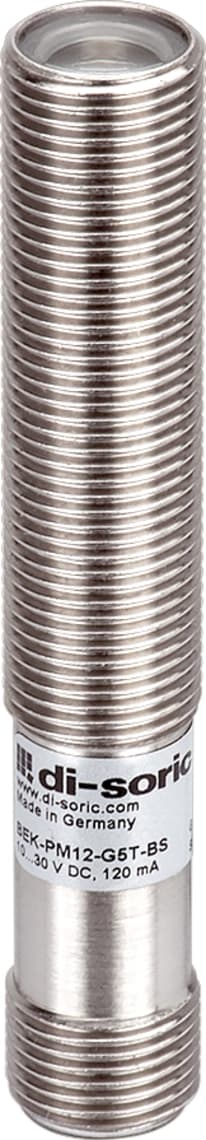

BEK-PM12-G5T-BS
Article Number: 209740

Spot lights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity across a wide voltage range.
Extremely small design
Homogeneous illumination
Protection class IP 67
Universal trigger input
High efficiency
Low levels of heat produced
Robust metal housing

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)120 mA (10 V DC)
Power1.2 W (24 V DC)
Inverse polarity protectionYes
Illuminated areaØ 10 mm
ThreadM12
Light apertureaxial
Housing materialBrass (CuZn, nickel-plated)
MaterialPMMA (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
DesignThread
CharacteristicsTrigger input
Trigger input high level> 4.0 V (Lighting OFF)
Trigger input low level< 3.0 V (Lighting ON)
Light sourceLED
ColorWhite
Wavelength6000 K
Deflection angle FWHM25°
Light intensity4.00 kLx (100.0 mm) 1.00 kLx (200.0 mm) 2.00 kLx (500.0 mm)
ControlIntegrated power control
On-delay time (Trig.)0.012 ms
Switch off delay (Trig.)0.012 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 65 / IP 67
ConnectionConnector, M12 x 1, 4-pin
Connection cableVK …
