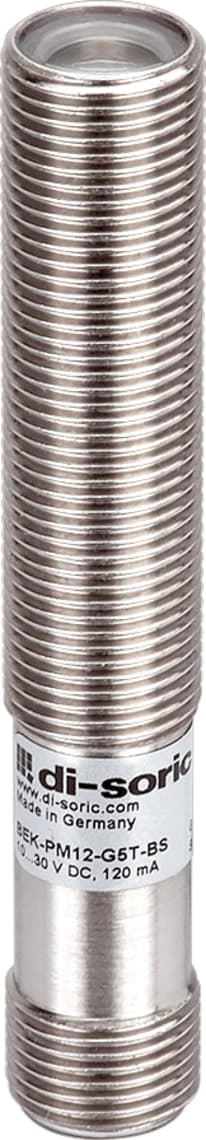

BEK-PM12-G1T-BS 10 … 30 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-PM12-G1T-BS 10 … 30 V DC Lighting for machine vision

BEK-PM12-G1T-BS 10 … 30 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-PM12-G1T-BS 10 … 30 V DC Lighting for machine vision

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)80 mA (10 V DC)
Power0.75 W (24 V DC)
Inverse polarity protectionYes
Illuminated areaØ 10 mm
ThreadM12
Light apertureaxial
Housing materialBrass (CuZn, nickel-plated)
MaterialPMMA (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignThread
CharacteristicsTrigger input
Trigger input high level> 4.0 V (Lighting OFF)
Trigger input low level< 3.0 V (Lighting ON)
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM25°
Light intensity1.70 kLx (100.0 mm) 450 Lux (200.0 mm) 75.0 Lux (500.0 mm)
ControlIntegrated power control
On-delay time (Trig.)0.012 ms
Switch off delay (Trig.)0.012 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 65 / IP 67
ConnectionConnector, M12 x 1, 4-pin
Connection cableVK …
