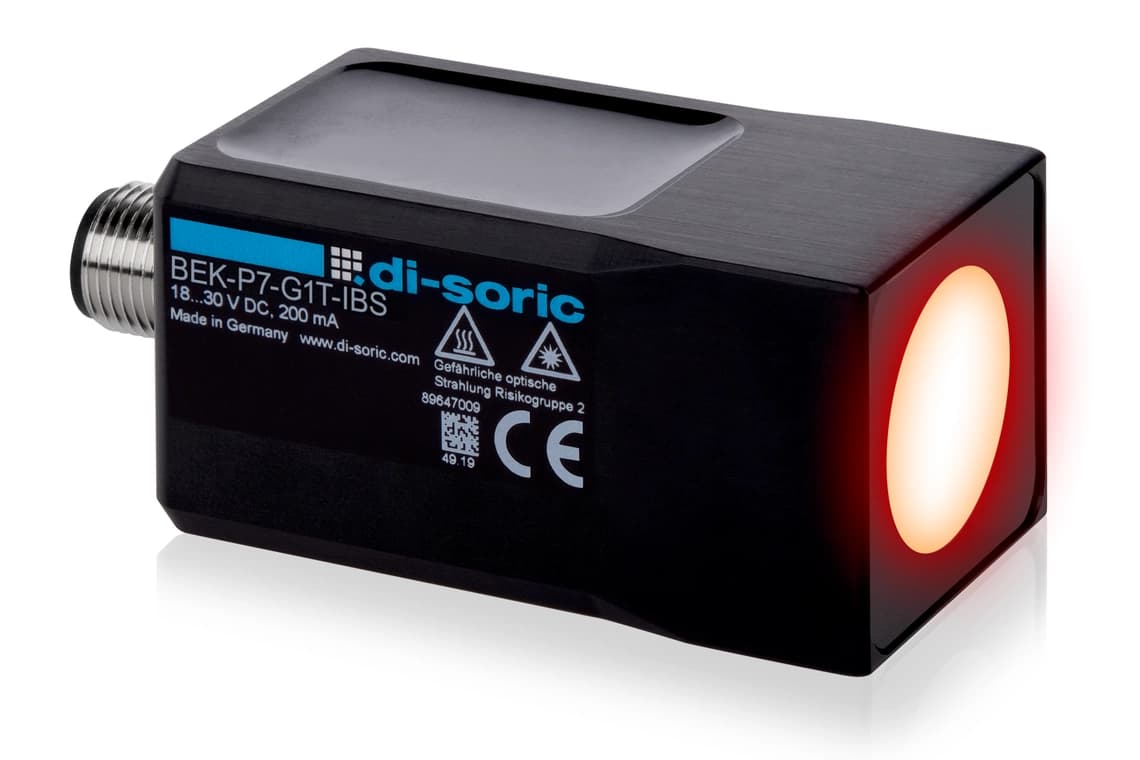

BEK-P7-G1T-IBS 18 … 30 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-P7-G1T-IBS 18 … 30 V DC Lighting for machine vision

BEK-P7-G1T-IBS 18 … 30 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-P7-G1T-IBS 18 … 30 V DC Lighting for machine vision

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)115 mA (24 V DC)
Power2.8 W (24 V)
Inverse polarity protectionYes
Illuminated areaØ 21 mm
Housing length60 mm
Housing height30 mm
Housing width32 mm
Light apertureaxial
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight110 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignSpot light
CharacteristicsTrigger input
Trigger input high level> 3.4 … 30.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorRed
Wavelength634 nm
Deflection angle FWHM7°
Light intensity8.50 kLx (500.0 mm) 2.30 kLx (1000.0 mm) 1.00 kLx (1500.0 mm)
ControlIntegrated power control
DisplayLED green - Operation
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
