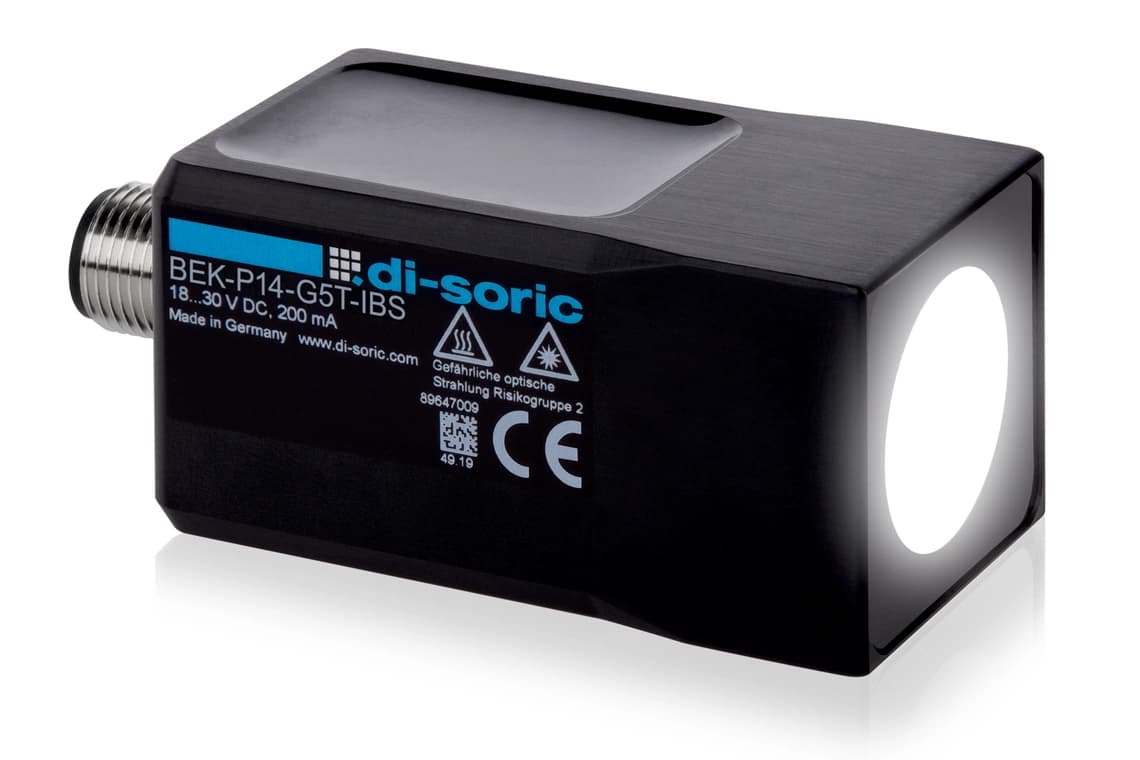

BEK-P14-G5T-IBS 18 … 30 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-P14-G5T-IBS 18 … 30 V DC Lighting for machine vision

BEK-P14-G5T-IBS 18 … 30 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-P14-G5T-IBS 18 … 30 V DC Lighting for machine vision

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)150 mA (24 V DC)
Power3.6 W (24 V)
Inverse polarity protectionYes
Illuminated areaØ 21 mm
Housing length60 mm
Housing height30 mm
Housing width32 mm
Light apertureaxial
Housing materialAluminum (Black, Anodized)
MaterialGlass, colorless transparent (Protection optics)
Weight114 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 2
ApprovalsUL
DesignSpot light
CharacteristicsTrigger input
Trigger input high level> 3.4 … 30.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorWhite
Wavelength6500 K
Deflection angle FWHM14°
Light intensity133 kLx (100.0 mm) 75.0 kLx (200.0 mm) 13.5 kLx (500.0 mm)
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
