Description

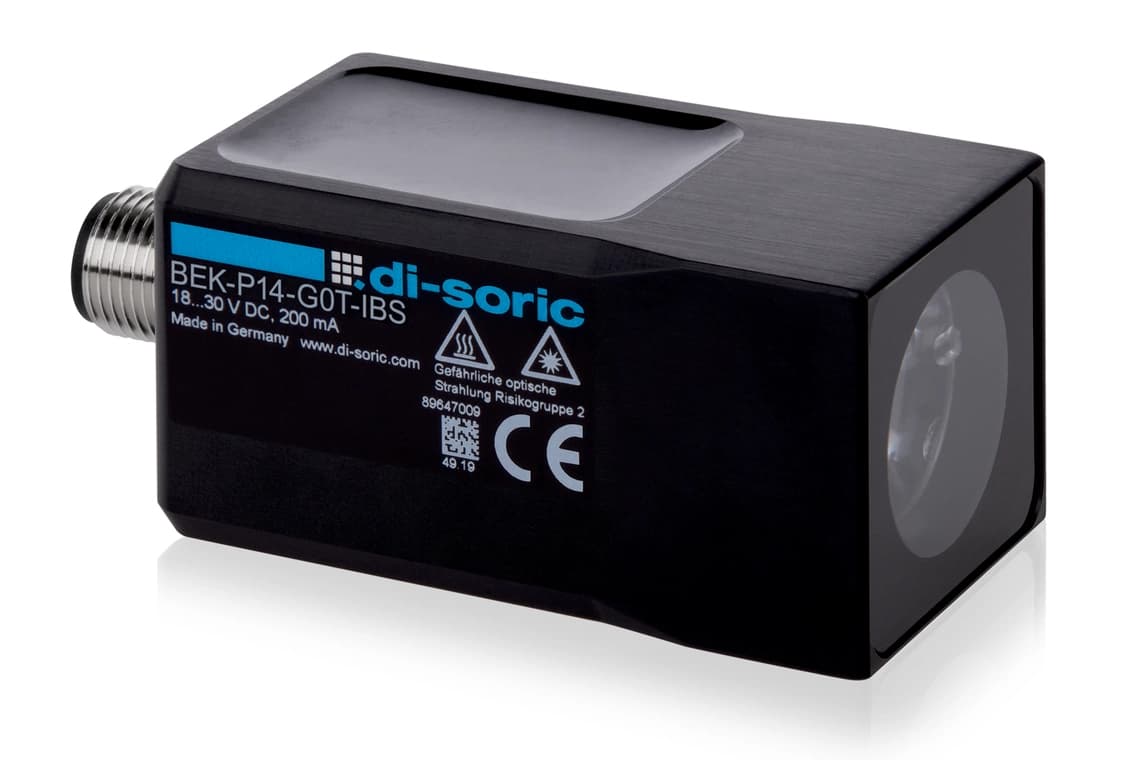

Spotlight with switchable constant light

BEK-P14-G0T-IBS
Article Number: 212925

Spot lights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity across a wide voltage range.
Constant level of light intensity over the entire voltage range
Homogeneous luminous field
External trigger input
Internal control of power output
High efficiency
Low levels of heat produced
Robust metal housing

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)115 mA (24 V DC)
Power2.8 W (24 V)
Inverse polarity protectionYes
Illuminated areaØ 21 mm
Housing length60 mm
Housing height30 mm
Housing width32 mm
Light apertureaxial
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight110 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignSpot light
CharacteristicsTrigger input
Trigger input high level> 3.4 … 30.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorInfrared
Wavelength860 nm
Deflection angle FWHM14°
Light intensity6500 µW/cm² (200.0 mm) 2000 µW/cm² (500.0 mm)
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
