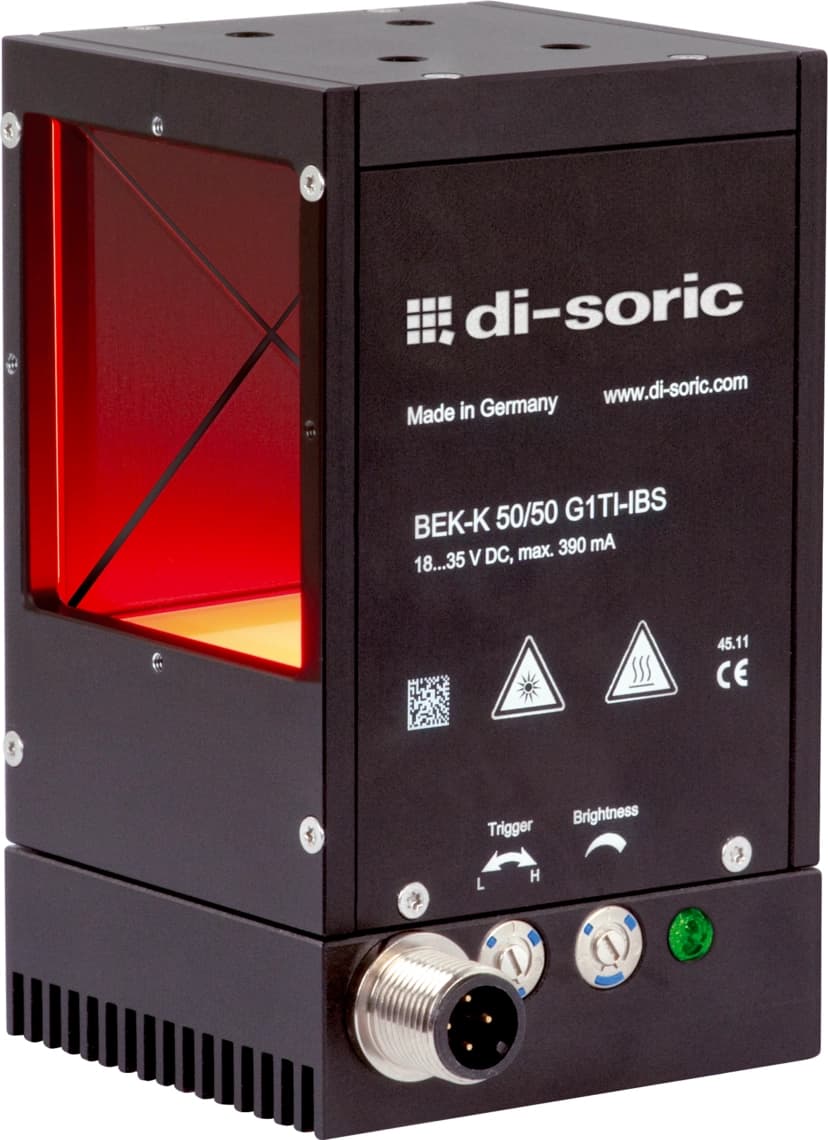

BEK-K50/50-G1TI-IBS 18 … 35 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-K50/50-G1TI-IBS 18 … 35 V DC Lighting for machine vision

BEK-K50/50-G1TI-IBS 18 … 35 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-K50/50-G1TI-IBS 18 … 35 V DC Lighting for machine vision

Description

Collapse all
Service voltage18 … 35 V DC (Supply Class 2)
No-load current (max.)300 mA (24 V DC)
Power7.2 W (24 V DC)
Inverse polarity protectionYes
Illuminated area50 x 50 mm
Housing materialAluminum (Black, Anodized)
MaterialMineral glass (Window)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM120°
Light intensity18.4 kLx (5.0 mm) 4.80 kLx (50.0 mm) 8.60 kLx (30.0 mm)
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 20
ConnectionConnector, M12, 3-pin
Connection cableVK …
