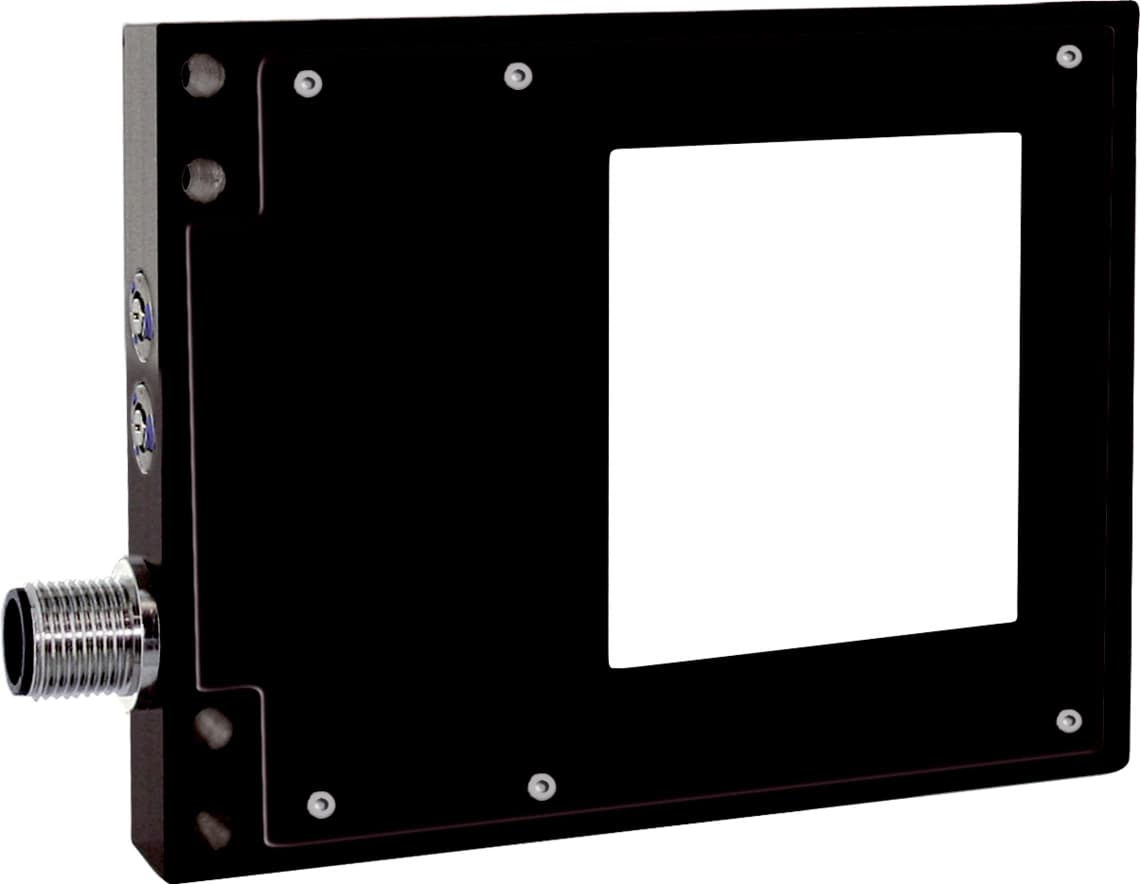

BEK-F50/50-G0TI-IBS Integrated power control Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-F50/50-G0TI-IBS Integrated power control Lighting for machine vision

BEK-F50/50-G0TI-IBS Integrated power control Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-F50/50-G0TI-IBS Integrated power control Lighting for machine vision

Description

Collapse all
Service voltage15 … 35 V DC (Supply Class 2)
No-load current (max.)160 mA (24 V DC)
Power3.9 W (24 V DC)
Inverse polarity protectionYes
Illuminated area50 x 50 mm
Housing length110 mm
Housing height80 mm
Housing width15 mm
Housing materialAluminum (Black, Anodized)
MaterialPC, opal diffuse (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorInfrared
Wavelength850 nm
Deflection angle FWHM120°
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
