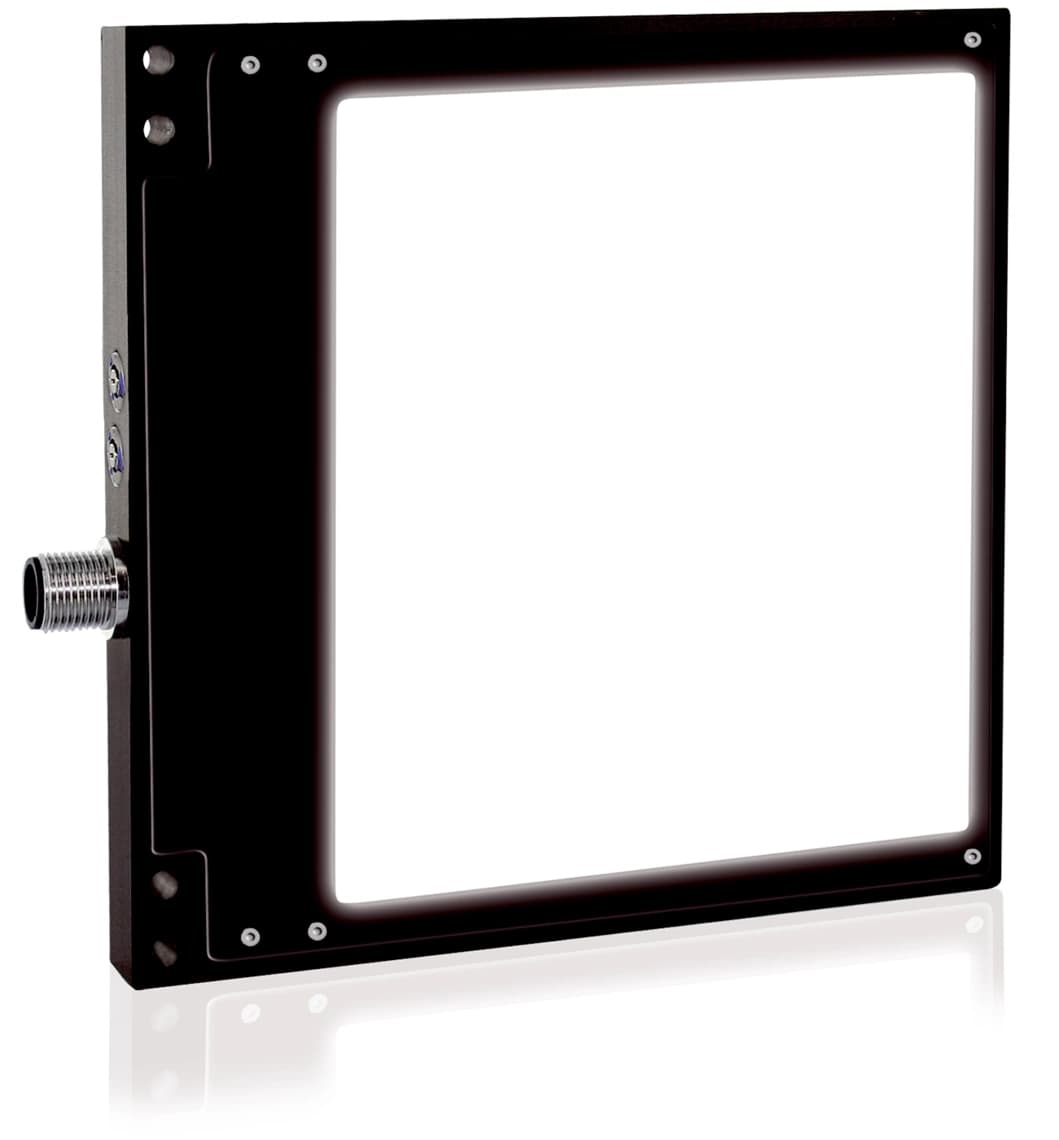

BEK-F200/200-G5TI-IBS Integrated power control Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-F200/200-G5TI-IBS Integrated power control Lighting for machine vision

BEK-F200/200-G5TI-IBS Integrated power control Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-F200/200-G5TI-IBS Integrated power control Lighting for machine vision

Description

Collapse all
Service voltage18 … 35 V DC (Supply Class 2)
No-load current (max.)510 mA (24 V DC)
Power12.2 W (24 V DC)
Inverse polarity protectionYes
Illuminated area200 x 200 mm
Housing dimensions230 x 260 x 18 mm
Housing length260 mm
Housing height230 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
MaterialPC, opal diffuse (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorWhite
Wavelength5600 K
Deflection angle FWHM120°
ControlIntegrated power control
DisplayLED green - Operating display
On-delay time (Trig.)0.282 ms
Switch off delay (Trig.)0.090 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
