BEK-F150/150-G1TI-IBS Integrated power control Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-F150/150-G1TI-IBS Integrated power control Lighting for machine vision
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-F150/150-G1TI-IBS Integrated power control Lighting for machine vision

Description

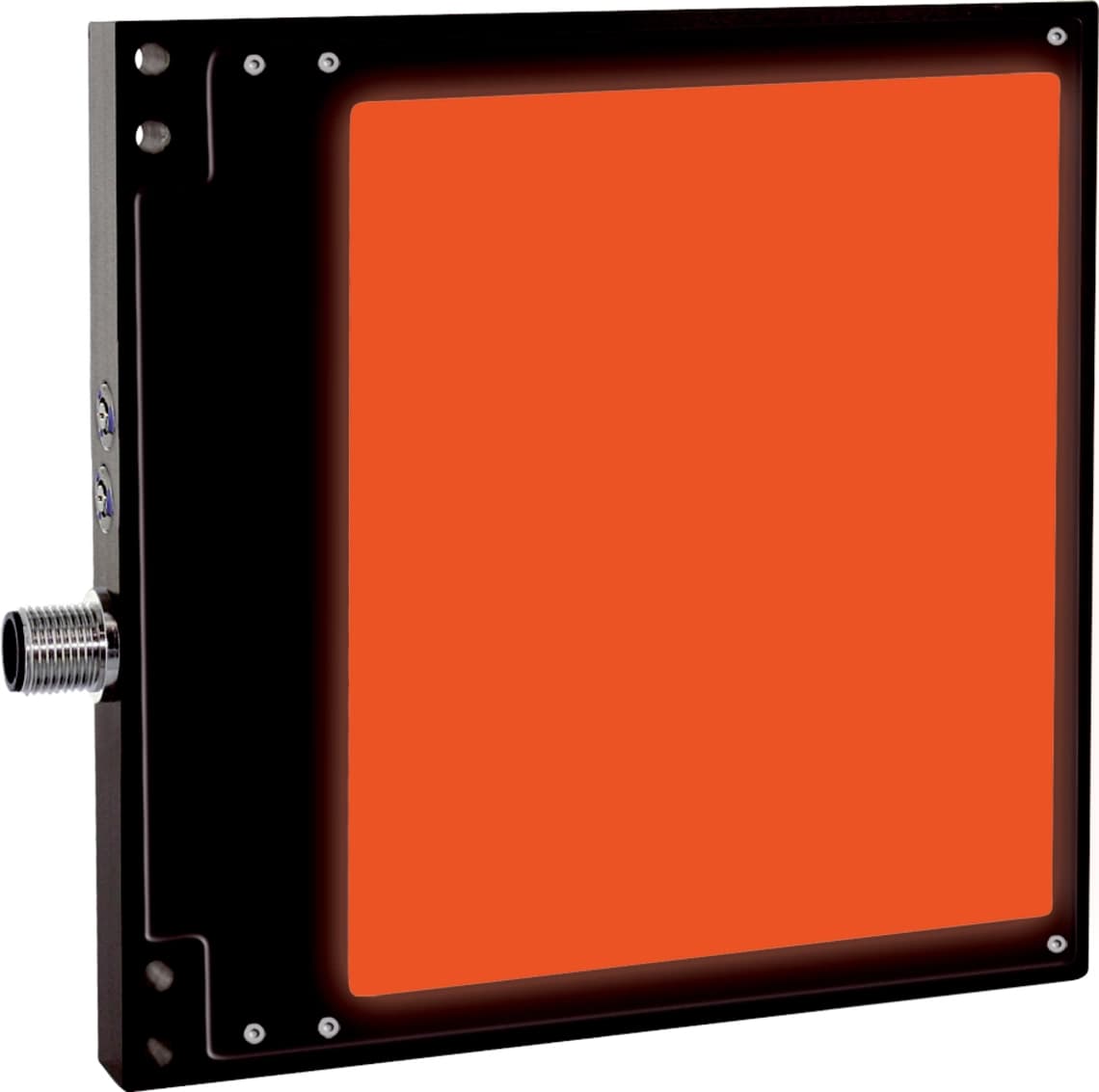

Area light with switchable constant light

BEK-F150/150-G1TI-IBS
Article Number: 206713

Area lights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity across a wide voltage range.
Constant level of light intensity over the entire voltage range
Homogeneous luminous field
High efficiency
Light intensity can be adjuste

Collapse all
Service voltage15 … 35 V DC (Supply Class 2)
No-load current (max.)350 mA (24 V DC)
Power8.4 W (24 V DC)
Inverse polarity protectionYes
Illuminated area150 x 150 mm
Housing dimensions180 x 210 x 15 mm
Housing length210 mm
Housing height180 mm
Housing width15 mm
Housing materialAluminum (Black, Anodized)
MaterialPC, opal diffuse (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM120°
ControlIntegrated power control
DisplayLED green - Operating display
On-delay time (Trig.)0.500 ms
Switch off delay (Trig.)0.120 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
