BEK-D70-G3TI-K-BS 10 … 35 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-D70-G3TI-K-BS 10 … 35 V DC Lighting for machine vision

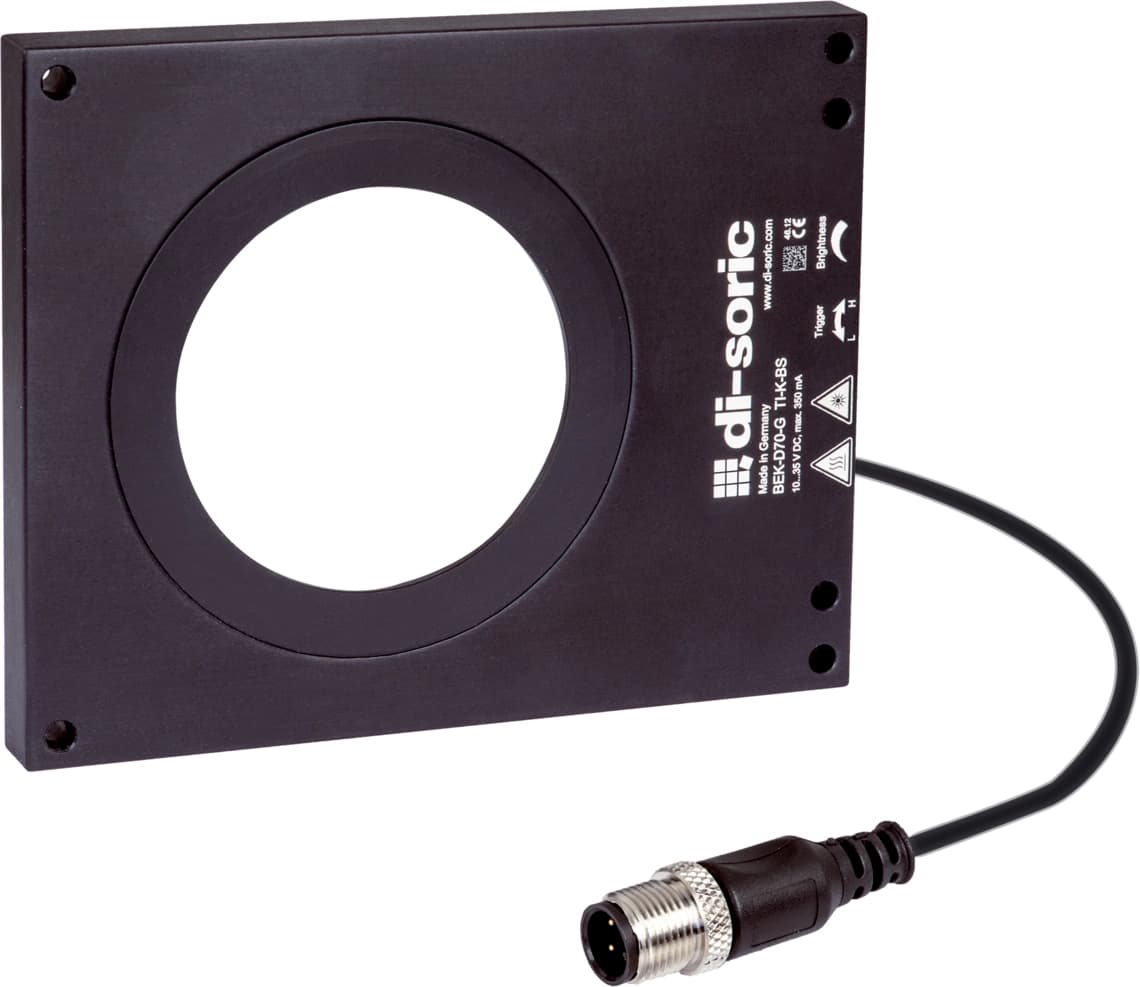

BEK-D70-G3TI-K-BS 10 … 35 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-D70-G3TI-K-BS 10 … 35 V DC Lighting for machine vision

Description

Collapse all
Service voltage10 … 35 V DC (Supply Class 2)
No-load current (max.)200 mA (24 V DC)
Power5.0 W (24 V DC)
Inverse polarity protectionYes
Insulation voltage endurance500 V
Illuminated areaØ 70
Housing dimensions105 x 130 x 12 mm
DiameterØ 70 mm (Diameter)
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
DesignDark field light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorBlue
Wavelength465 nm
Deflection angle FWHM30°
ControlIntegrated power control
DisplayLED green - Operating display
On-delay time (Trig.)0.400 ms
Switch off delay (Trig.)0.120 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C (Continuous operation)
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
