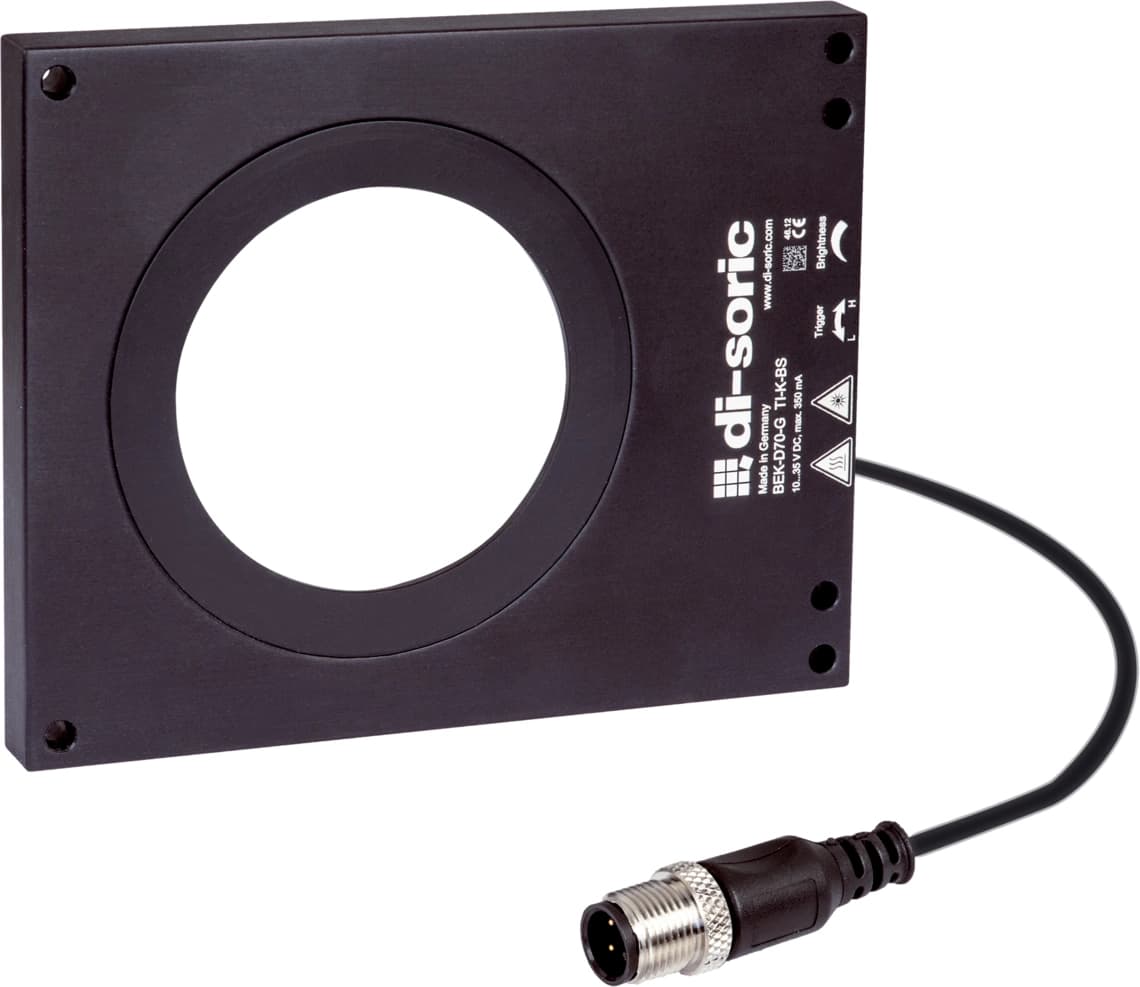

BEK-D70-G2TI-K-BS 10 … 35 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-D70-G2TI-K-BS 10 … 35 V DC Lighting for machine vision

BEK-D70-G2TI-K-BS 10 … 35 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-D70-G2TI-K-BS 10 … 35 V DC Lighting for machine vision

Description

Collapse all
Service voltage10 … 35 V DC (Supply Class 2)
No-load current (max.)220 mA (24 V DC)
Power5.5 W (24 V DC)
Inverse polarity protectionYes
Insulation voltage endurance500 V
Illuminated areaØ 70
Housing dimensions105 x 130 x 12 mm
DiameterØ 70 mm (Diameter)
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignDark field light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorGreen
Wavelength525 nm
Deflection angle FWHM40°
ControlIntegrated power control
DisplayLED green - Operating display
On-delay time (Trig.)0.400 ms
Switch off delay (Trig.)0.120 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C (Continuous operation)
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
