BEK-A100-G1T-K-BS 18 … 30 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK-A100-G1T-K-BS 18 … 30 V DC (Supply Class 2) Lighting for machine vision

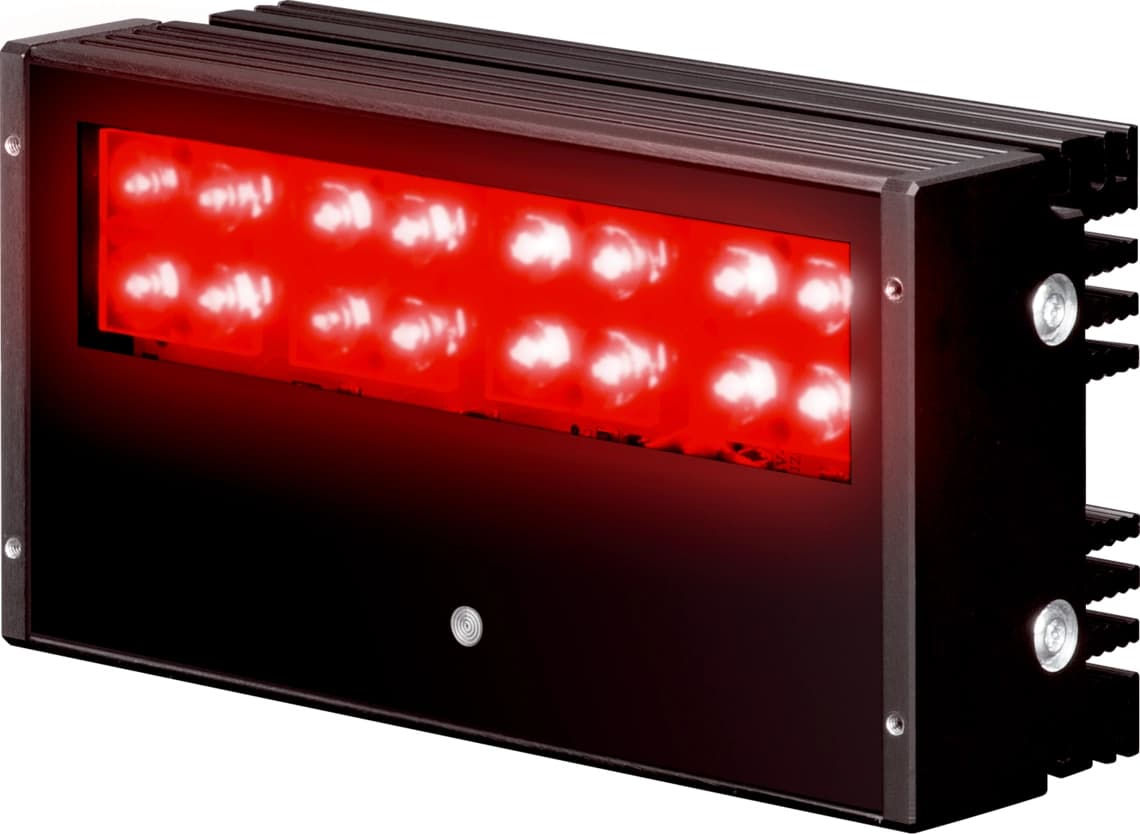

BEK-A100-G1T-K-BS 18 … 30 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK-A100-G1T-K-BS 18 … 30 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
Internal power consumption535 mA (24 V DC)
Power12.0 W (24 V DC)
Inverse polarity protectionYes
Illuminated area96 x 23 mm
Housing dimensions40 x 60 x 113 mm
Housing length113 mm
Housing height40 mm
Housing width60 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, hardcoated (Safety screen)
Weight470 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignBarlight
Trigger input high level3.3 … 30.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM30°
Light intensity90.0 kLx (100.0 mm) 42.0 kLx (200.0 mm) 9.50 kLx (500.0 mm)
ControlIntegrated power control
DisplayLED green - Operating display
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionPigtail, 0.3 m (+ Connector M12), 4-pin
Connection cableVK …
