BEK 1-D120-G0TI-IBS 10 … 35 V DC Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BEK 1-D120-G0TI-IBS 10 … 35 V DC Lighting for machine vision

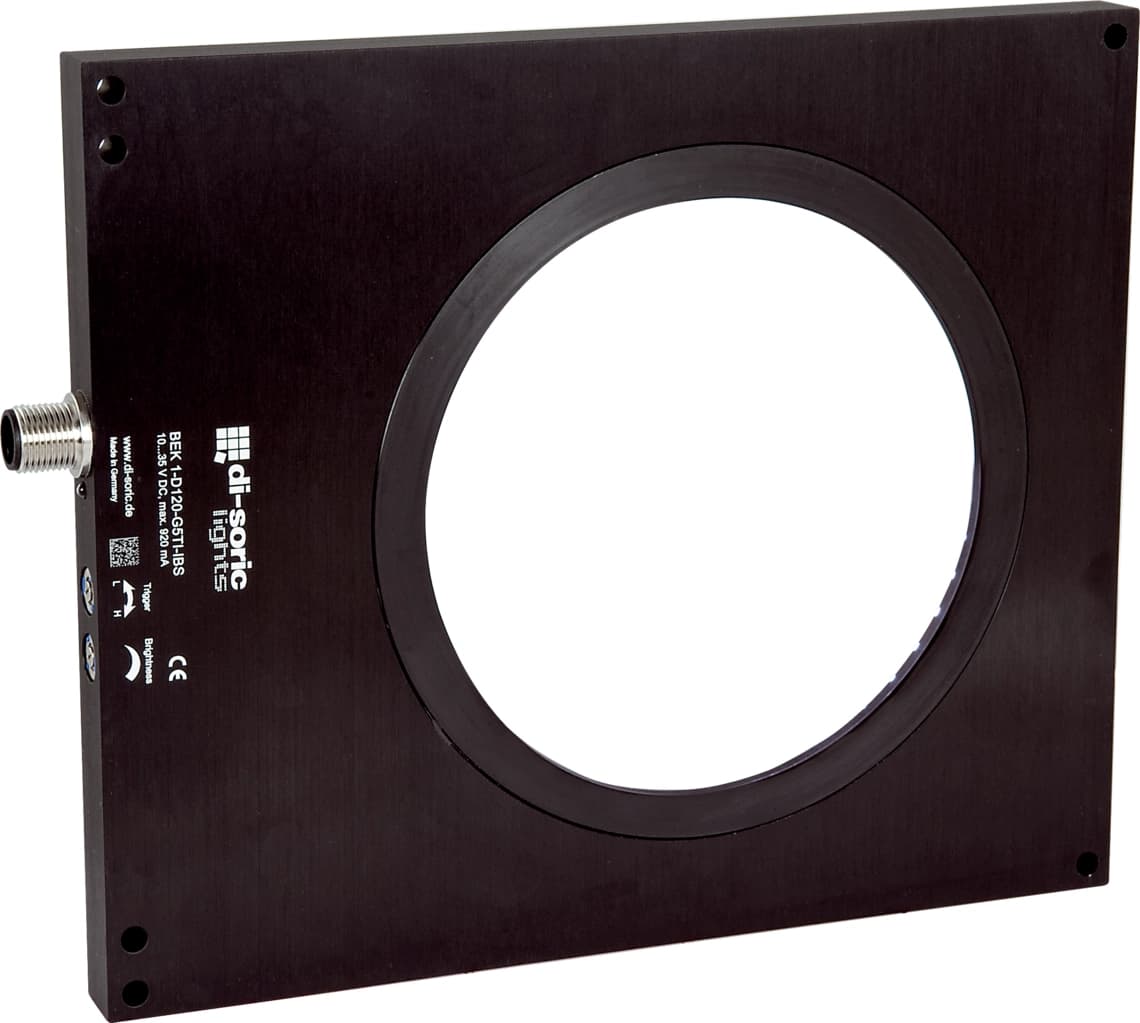

BEK 1-D120-G0TI-IBS 10 … 35 V DC Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BEK 1-D120-G0TI-IBS 10 … 35 V DC Lighting for machine vision

Description

Collapse all
Service voltage10 … 35 V DC (Supply Class 2)
No-load current (max.)200 mA (24 V DC)
Power5.0 W (24 V DC)
Inverse polarity protectionYes
Insulation voltage endurance500 V
Illuminated areaØ 120
Housing dimensions170 x 200 x 15 mm
DiameterØ 120 mm (Diameter)
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignDark field light
CharacteristicsTrigger input
Trigger input high level3.3 … 35.0 V
Trigger input low level< 2.8 V
Light sourceLED
ColorInfrared
Wavelength870 nm
Deflection angle FWHM30°
ControlIntegrated power control
DisplayLED green - Operating display
On-delay time (Trig.)0.250 ms
Switch off delay (Trig.)0.050 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
