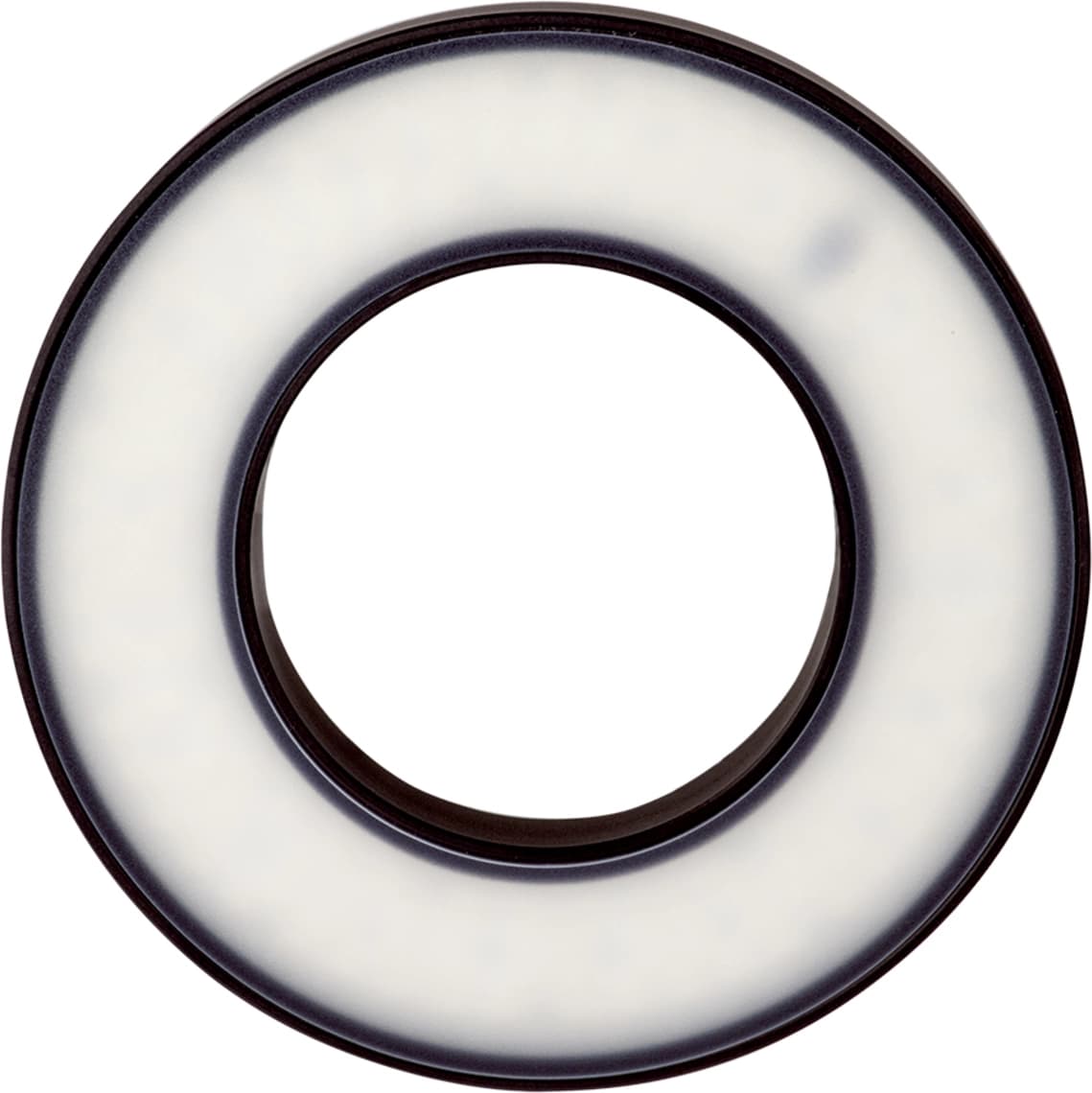

BE-R70-F1-K-DIF No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R70-F1-K-DIF No constant voltage! Lighting for machine vision

BE-R70-F1-K-DIF No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R70-F1-K-DIF No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)96.0 W
Energization factor (in pulse / max.)8
Energization (in pulse / max.)6000 mA
Service voltageNo constant voltage!
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 70 / Ø 130 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, diffuse (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Light sourceLED
ColorRed (diffuse)
Wavelength633 nm
Deflection angle FWHM30°
Light intensity3.00 kLx (200.0 mm / 100 %) 10.5 kLx (200.0 mm / 400 %) 22.0 kLx (200.0 mm / 800 %) 620 Lux (500.0 mm / 100 %) 2.40 kLx (500.0 mm / 400 %) 4.70 kLx (500.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
