Kapadiya Automation

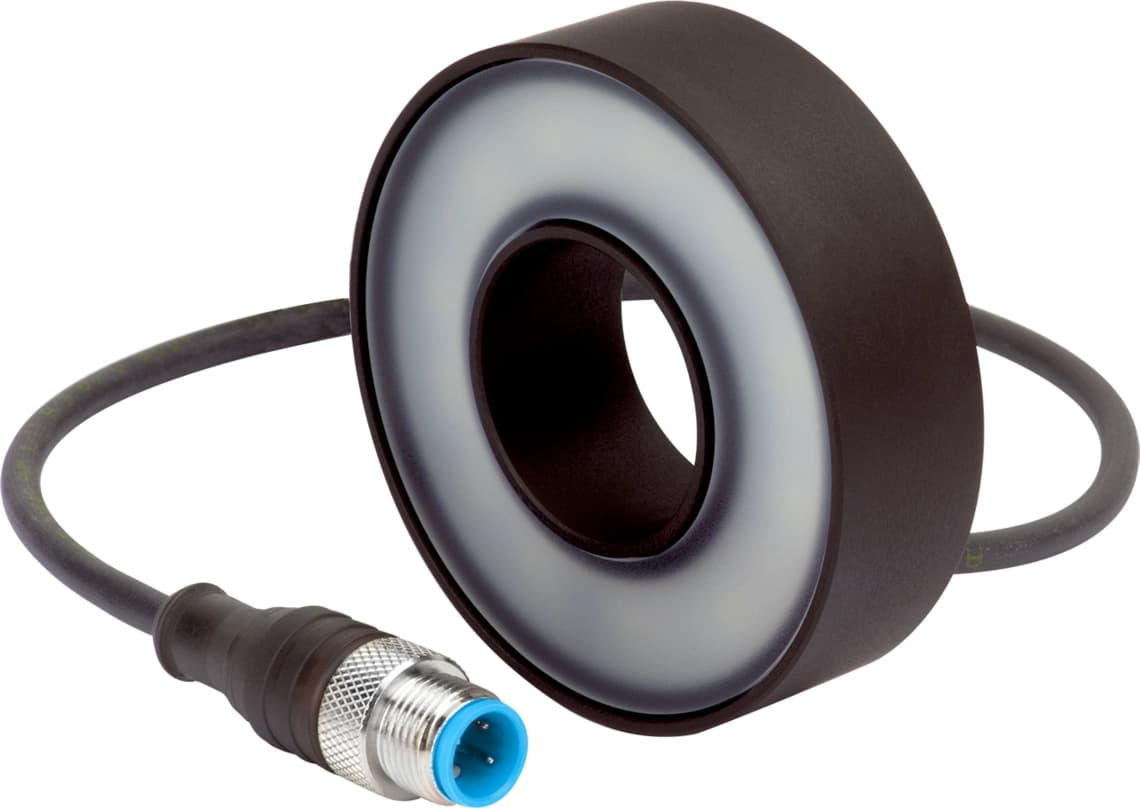

BE-R30-G5-K-BS-DIF 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R30-G5-K-BS-DIF 24 V DC (Supply Class 2) Lighting for machine vision

BE-R30-G5-K-BS-DIF 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R30-G5-K-BS-DIF 24 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
Power4.6 W (24 V DC)
Insulation voltage endurance500 V
DiameterØ 30 / Ø 69 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, diffuse (Protection optics)
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
CharacteristicsState-of-the-art high power LEDs
Light sourceLED
ColorWhite (diffuse)
Wavelength6000 K
Deflection angle FWHM80°
Light intensity10.9 kLx (100.0 mm) 3.50 kLx (200.0 mm) 1.60 kLx (300.0 mm)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
