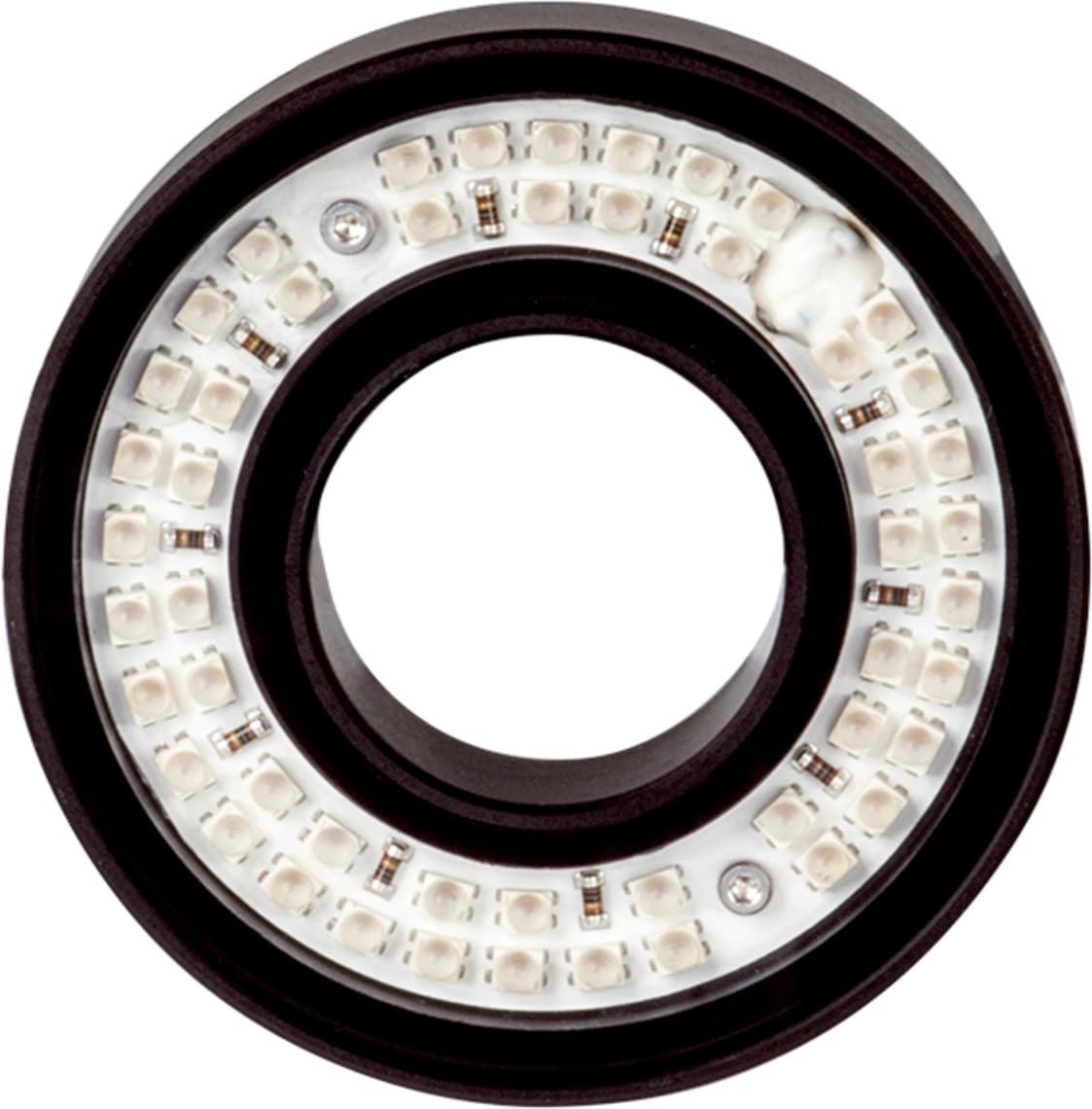

BE-R30-F5-K-CLR No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R30-F5-K-CLR No constant voltage! Lighting for machine vision

BE-R30-F5-K-CLR No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R30-F5-K-CLR No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)45.0 W
Energization factor (in pulse / max.)10
Energization (in pulse / max.)2000 mA
Service voltageNo constant voltage!
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 30 / Ø 69 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, clear (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Light sourceLED
ColorWhite (clear)
Wavelength6500 K
Deflection angle FWHM120°
Light intensity5.10 kLx (100.0 mm / 100 %) 19.1 kLx (100.0 mm / 500 %) 30.0 kLx (100.0 mm / 1000 %) 1.50 kLx (200.0 mm / 100 %) 5.60 kLx (200.0 mm / 500 %) 8.10 kLx (200.0 mm / 1000 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
