BE-R30-F1-K-DIF No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R30-F1-K-DIF No constant voltage! Lighting for machine vision
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R30-F1-K-DIF No constant voltage! Lighting for machine vision

Description

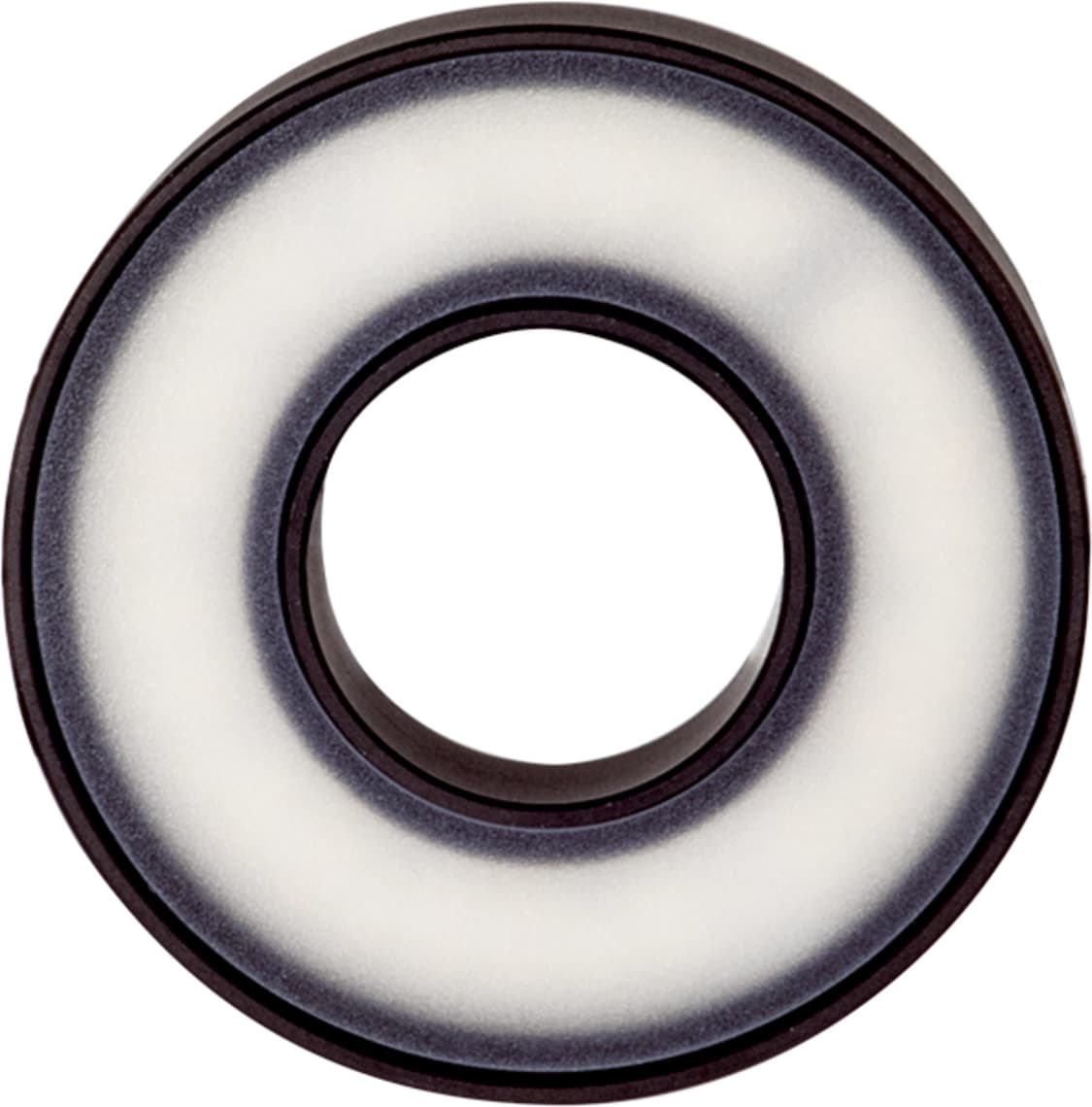

Externally flashable ringlight

BE-R30-F1-K-DIF
Article Number: 207140

Externally flashable ringlights are suited for operation using a constant current source or a flash controller. They are the ideal solution for very short camera exposure times and therefore for extremely high-speed processes.
High excess current factor
Pulsed mode for inspection of fast moving objects
Extremely powerful light for high depth of field
Long life thanks to intelligent thermal management
Homogeneous luminous field
High protection type IP 67
Robust metal housing

Collapse all
Power consumption (in pulse / max.)30.0 W
Energization factor (in pulse / max.)8
Energization (in pulse / max.)2000 mA
Service voltageNo constant voltage!
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 30 / Ø 69 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, diffuse (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Light sourceLED
ColorRed (diffuse)
Wavelength633 nm
Deflection angle FWHM30°
Light intensity3.30 kLx (100.0 mm / 100 %) 12.4 kLx (100.0 mm / 400 %) 25.0 kLx (100.0 mm / 800 %) 1.00 kLx (200.0 mm / 100 %) 3.80 kLx (200.0 mm / 400 %) 6.50 kLx (200.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
