BE-R30-F1-K-CLR No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R30-F1-K-CLR No constant voltage! Lighting for machine vision

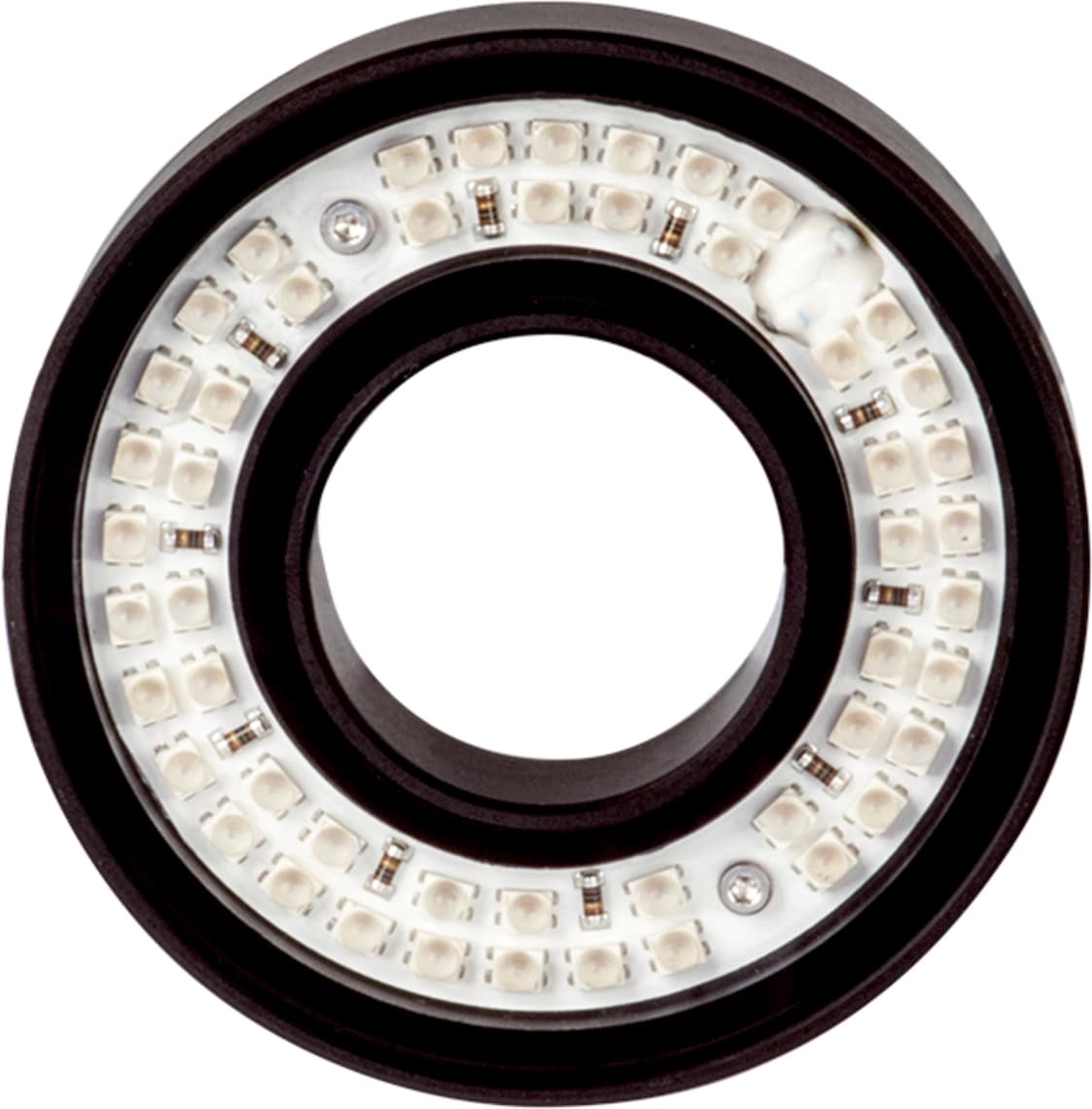

BE-R30-F1-K-CLR No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R30-F1-K-CLR No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)30.0 W
Energization factor (in pulse / max.)8
Energization (in pulse / max.)2000 mA
Service voltageNo constant voltage!
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 30 / Ø 69 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, clear (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Light sourceLED
ColorRed (clear)
Wavelength633 nm
Deflection angle FWHM30°
Light intensity7.00 kLx (100.0 mm / 100 %) 28.8 kLx (100.0 mm / 400 %) 60.5 kLx (100.0 mm / 800 %) 3.50 kLx (200.0 mm / 100 %) 13.0 kLx (200.0 mm / 400 %) 26.8 kLx (200.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
