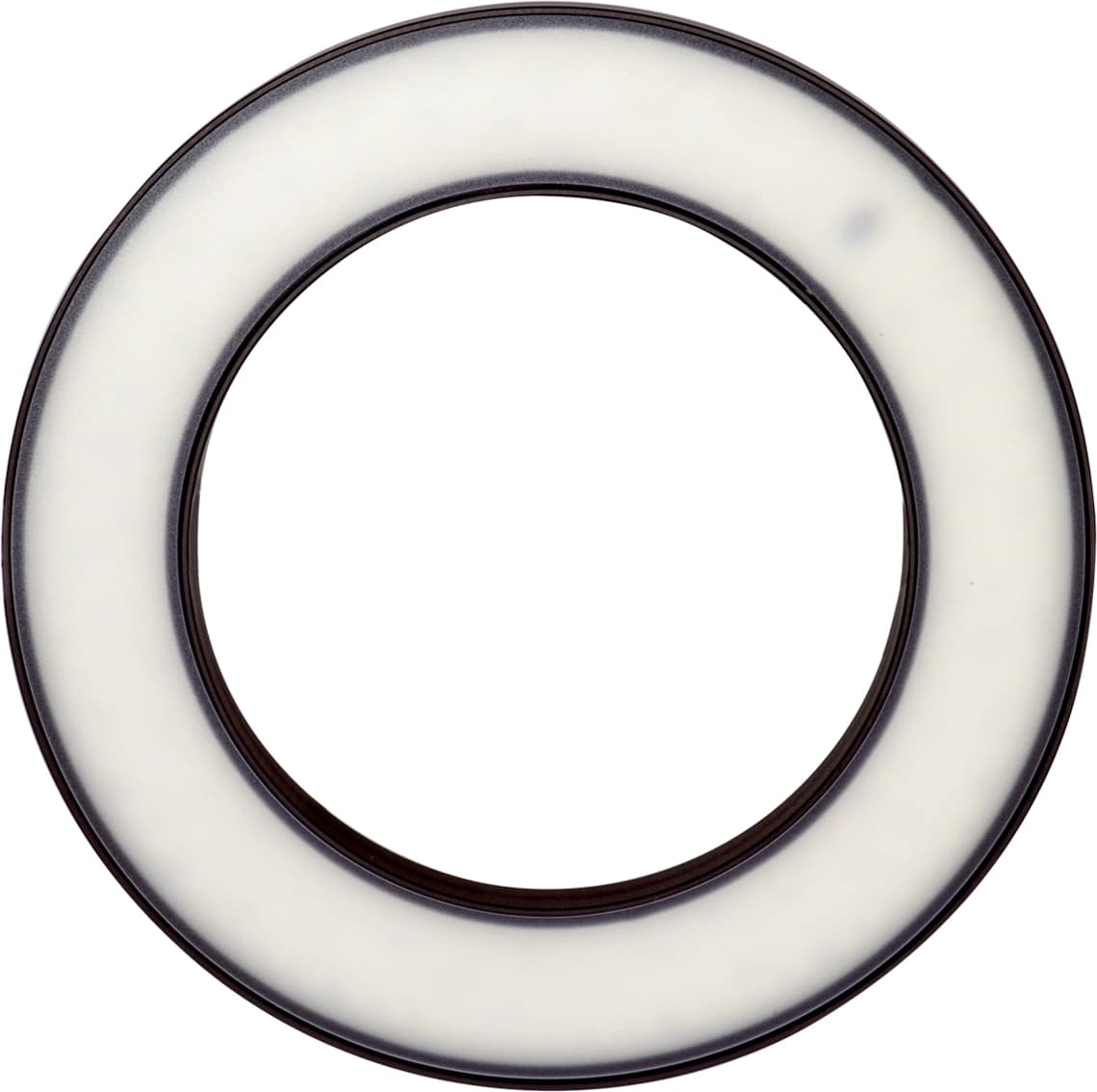

BE-R130-F5-K-DIF No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-R130-F5-K-DIF No constant voltage! Lighting for machine vision

BE-R130-F5-K-DIF No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-R130-F5-K-DIF No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)275 W
Energization factor (in pulse / max.)10
Energization (in pulse / max.)11000 mA
Service voltageNo constant voltage!
Inverse polarity protectionYes
Insulation voltage endurance500 V
DiameterØ 131 / Ø 200 mm (Diameter)
Height20 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, diffuse (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignRinglight
Light sourceLED
ColorWhite (diffuse)
Wavelength6500 K
Deflection angle FWHM120°
Light intensity3.20 kLx (300.0 mm / 100 %) 11.2 kLx (300.0 mm / 500 %) 18.3 kLx (300.0 mm / 1000 %) 1.30 kLx (500.0 mm / 100 %) 4.60 kLx (500.0 mm / 500 %) 7.50 kLx (500.0 mm / 1000 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
