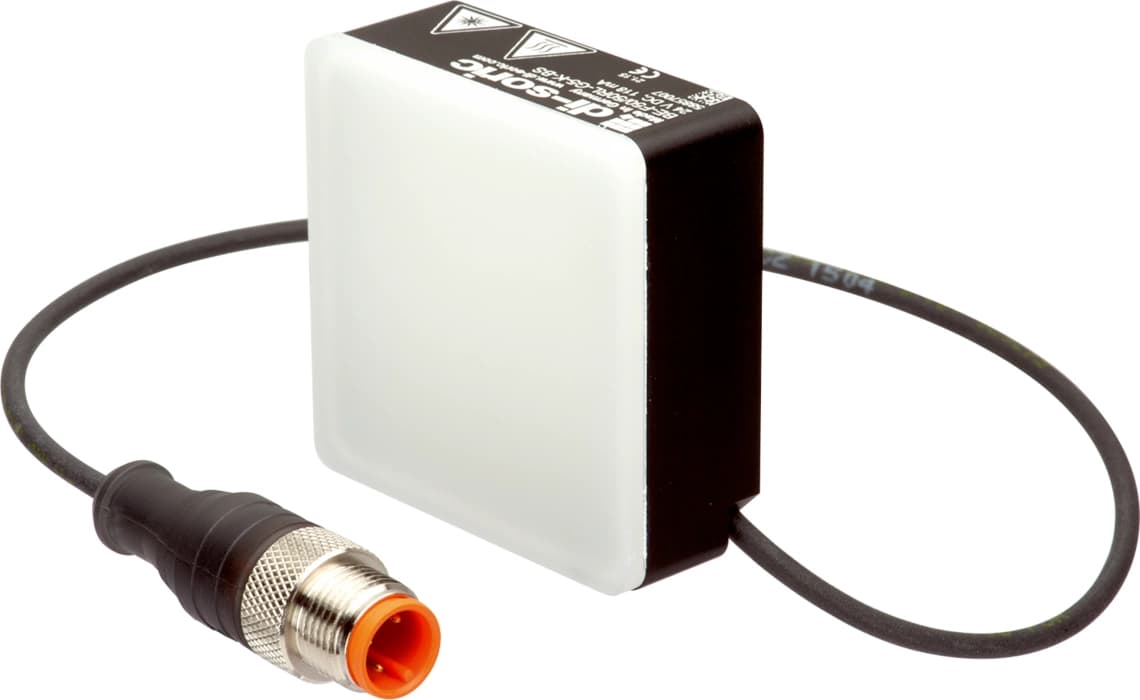

BE-F50/50RL-G5-K-BS Integrated power control Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-F50/50RL-G5-K-BS Integrated power control Lighting for machine vision

BE-F50/50RL-G5-K-BS Integrated power control Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-F50/50RL-G5-K-BS Integrated power control Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
No-load current (max.)118 mA (24 V DC)
Power2.8 W (24 V DC)
Inverse polarity protectionno
Illuminated area50 x 50 mm
Housing dimensions50 x 50 x 20 mm
Housing length50 mm
Housing height50 mm
Housing width20 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, diffuse (Protection optics)
Weight95 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
Light sourceLED
ColorWhite
Wavelength5000 K
Deflection angle FWHM120°
ControlIntegrated power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C (Continuous operation)
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
