Kapadiya Automation

BE-F50/50-F1-K Flashable by means of flash controller Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-F50/50-F1-K Flashable by means of flash controller Lighting for machine vision

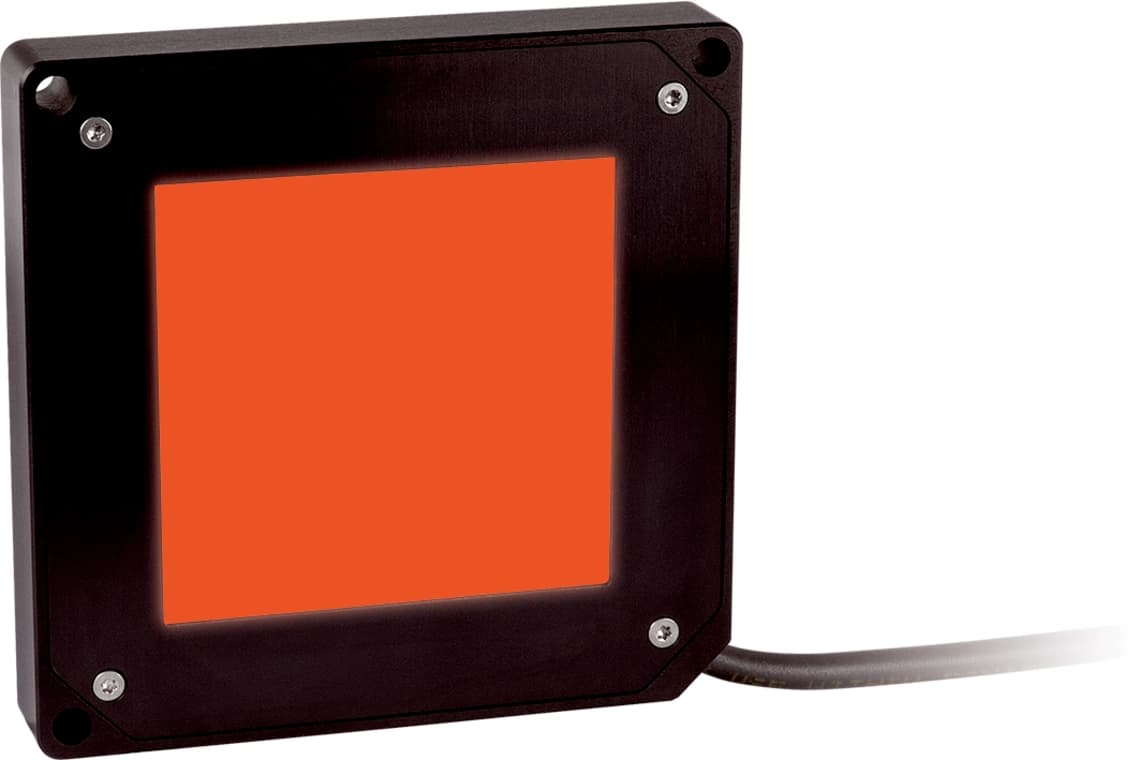

BE-F50/50-F1-K Flashable by means of flash controller Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-F50/50-F1-K Flashable by means of flash controller Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)25.0 W
Energization factor (in pulse / max.)6.4
Energization (in pulse / max.)1600 mA
Service voltageNo constant voltage!
Inverse polarity protectionno
Insulation voltage endurance500 V
Illuminated area50 x 50 mm
Housing length80 mm
Housing height13 mm
Housing width80 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PC, opal diffuse (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
Light sourceLED
ColorRed (diffuse)
Wavelength625 nm
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
