BE-F30/30RL-G1-K-BS Integrated power control Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-F30/30RL-G1-K-BS Integrated power control Lighting for machine vision
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-F30/30RL-G1-K-BS Integrated power control Lighting for machine vision

Description

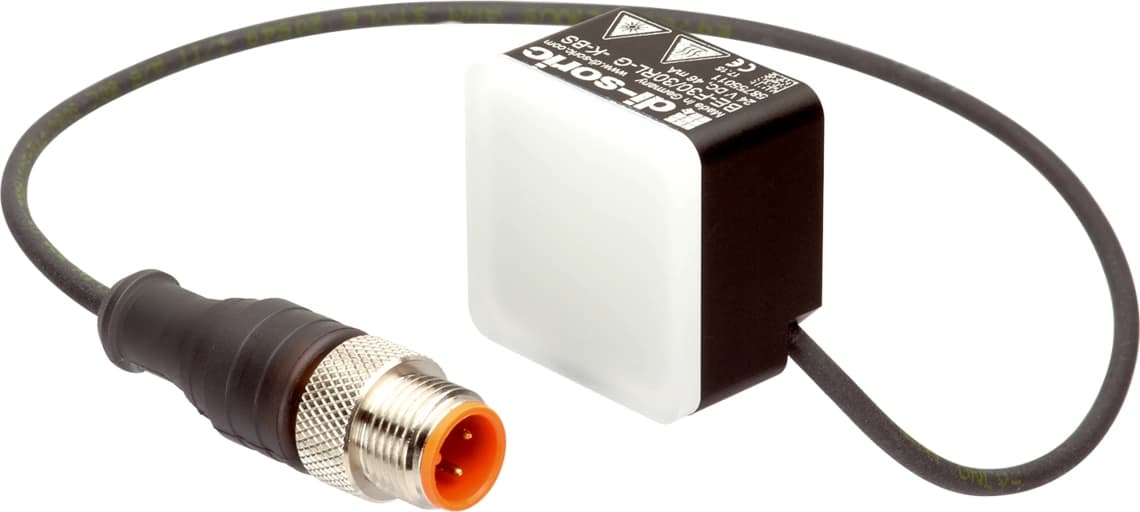

Area light with switchable constant light

BE-F30/30RL-G1-K-BS
Article Number: 209699

Area lights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity across a wide voltage range.
High light intensity
A minimal edge region
Homogeneous luminous field
Very compact design
High protection type IP 67
Robust design

Collapse all
Service voltage24 V DC (Supply Class 2)
No-load current (max.)50 mA (24 V DC)
Power1.2 W (24 V DC)
Inverse polarity protectionno
Illuminated area30 x 30 mm
Housing dimensions30 x 30 x 20 mm
Housing length30 mm
Housing height30 mm
Housing width20 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, diffuse (Protection optics)
Weight45 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM120°
ControlIntegrated power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C (Continuous operation)
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
