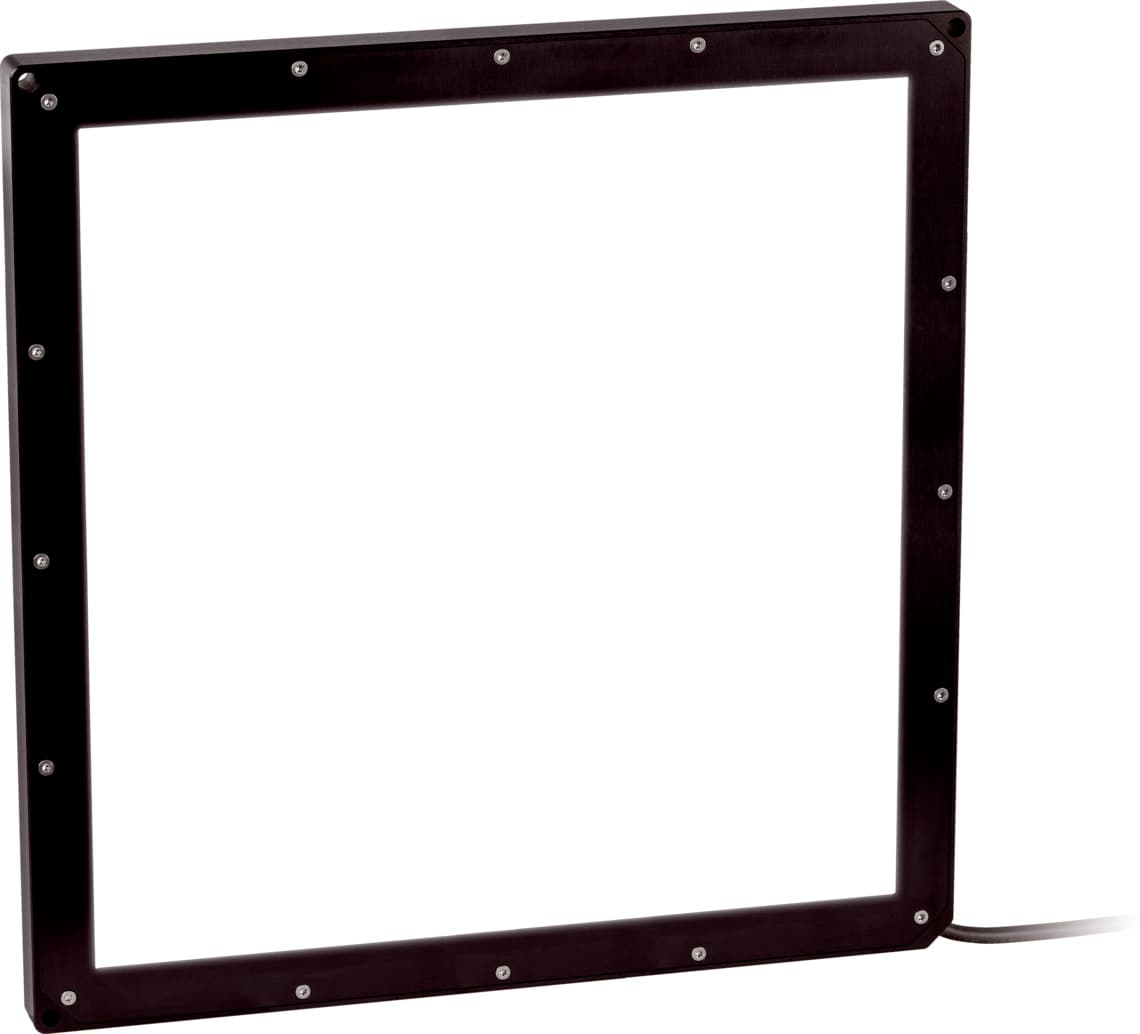

BE-F200/200-F5-K Flashable by means of flash controller Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-F200/200-F5-K Flashable by means of flash controller Lighting for machine vision

BE-F200/200-F5-K Flashable by means of flash controller Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-F200/200-F5-K Flashable by means of flash controller Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)180 W
Energization factor (in pulse / max.)9
Energization (in pulse / max.)6400 mA
Service voltageNo constant voltage!
Insulation voltage endurance500 V
Illuminated area200 x 200 mm
Housing length230 mm
Housing height13 mm
Housing width230 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PC, opal diffuse (Protection optics)
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignArea light
Light sourceLED
ColorWhite (diffuse)
Wavelength6500 K
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
