BE-DOME60/50-RGB-T4 Ø 60 mm Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-DOME60/50-RGB-T4  Ø 60 mm Lighting for machine vision
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

Inquiry Form

Get more information about BE-DOME60/50-RGB-T4 Ø 60 mm Lighting for machine vision

Description

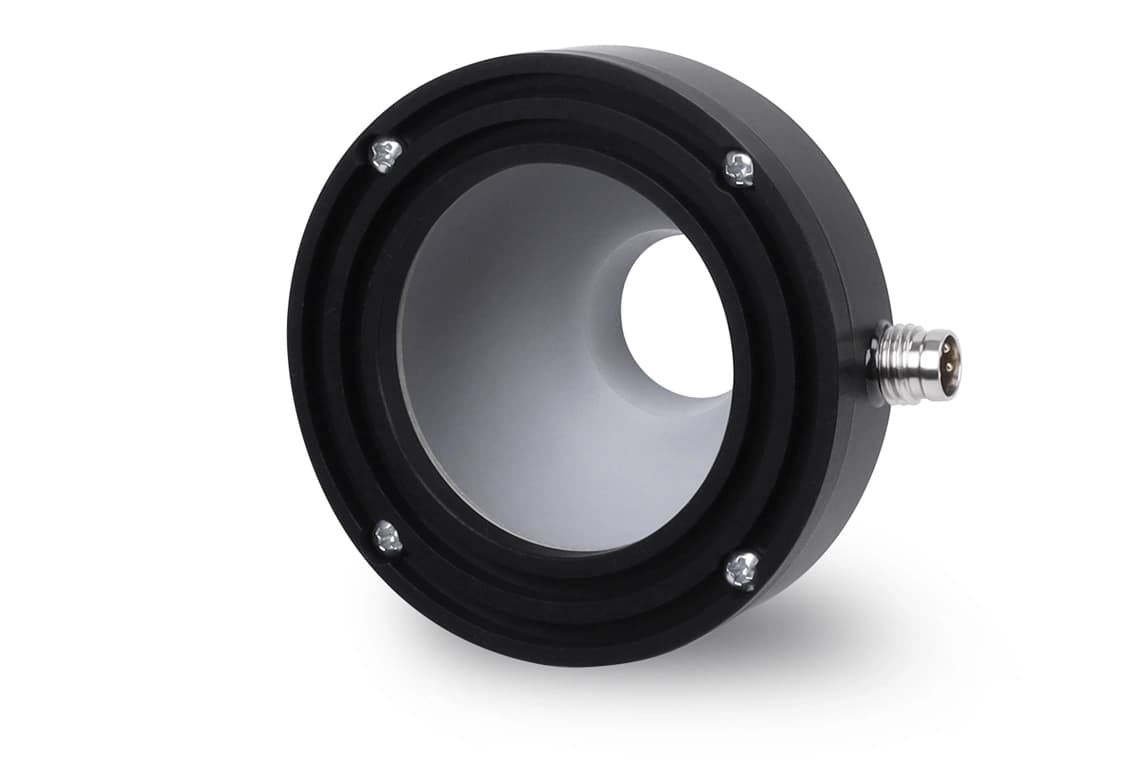

Dome light

BE-DOME60/50-RGB-T4
Article Number: 209927

Spherical dome lights from di-soric guarantee an extremely diffuse lighting scenario. Shadowing from rugged or scratched surfaces is thus suppressed to the greatest extent possible. The camera application can thus represent contrasts and product features which are in focus in a much more process-stable manner than with point or area-type lights.
RGB light with separately controllable colors
Extremely homogeneous, diffuse illumination
Very compact design
High light intensity
Robust design

Collapse all
Service voltage24 V DC
Power1.2 W (24 V DC)
Power consumption150 mA (3 colors, ∑ < 3.6 W)
Illuminated areaØ 50 mm
Quantity20 (LEDs)
DiameterØ 60 mm (Diameter)
Housing materialAluminum / Plastic
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
Light sourceLED
ColorRGB
Wavelength630, 530, 470 nm
Deflection angle FWHM120°
Ambient temperature during operation0 … +50 °C
ConnectionConnector, M8, 4-pin
