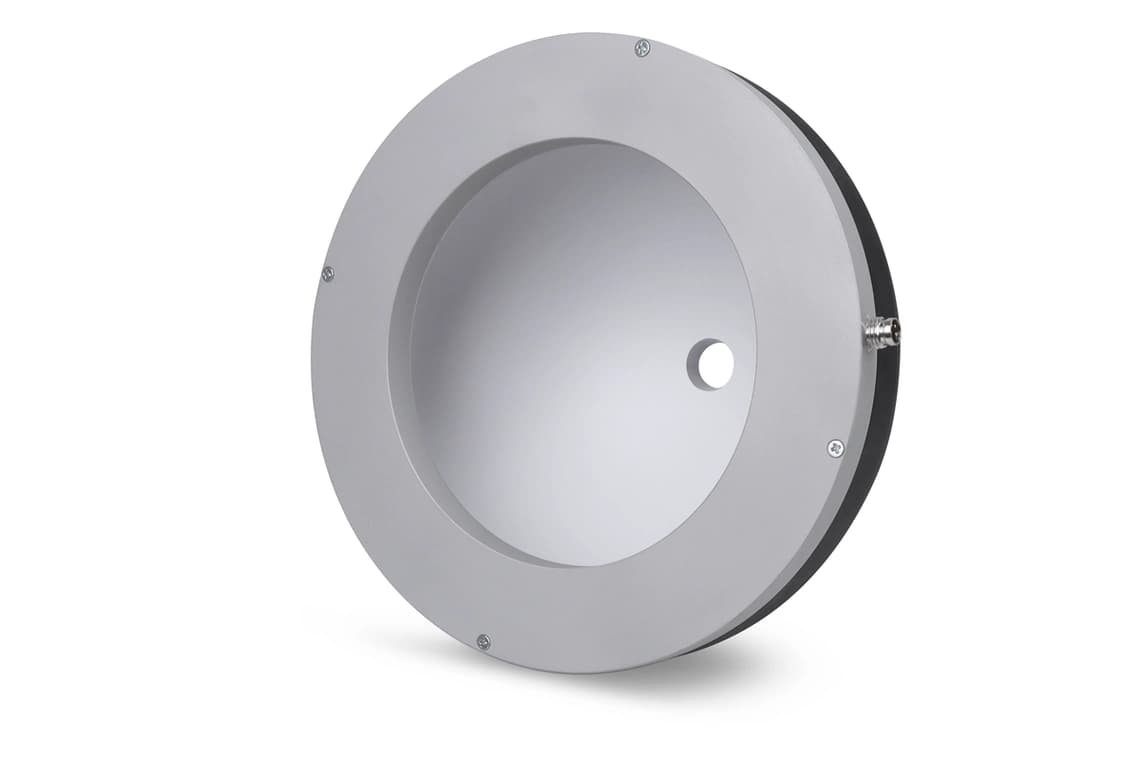

BE-DOME170/110-G1-T4 Ø 170 mm Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-DOME170/110-G1-T4 Ø 170 mm Lighting for machine vision

BE-DOME170/110-G1-T4 Ø 170 mm Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-DOME170/110-G1-T4 Ø 170 mm Lighting for machine vision

Description

Collapse all
Service voltage24 V DC
Power3.4 W (140 mA, 24 V DC)
Power consumption140 mA
Illuminated areaØ 114 mm
DiameterØ 170 mm (Diameter)
Housing materialAluminum / Plastic
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
Light sourceLED
ColorRed
Wavelength635 nm
Deflection angle FWHM120°
Ambient temperature during operation0 … +50 °C
ConnectionConnector, M8, 4-pin
