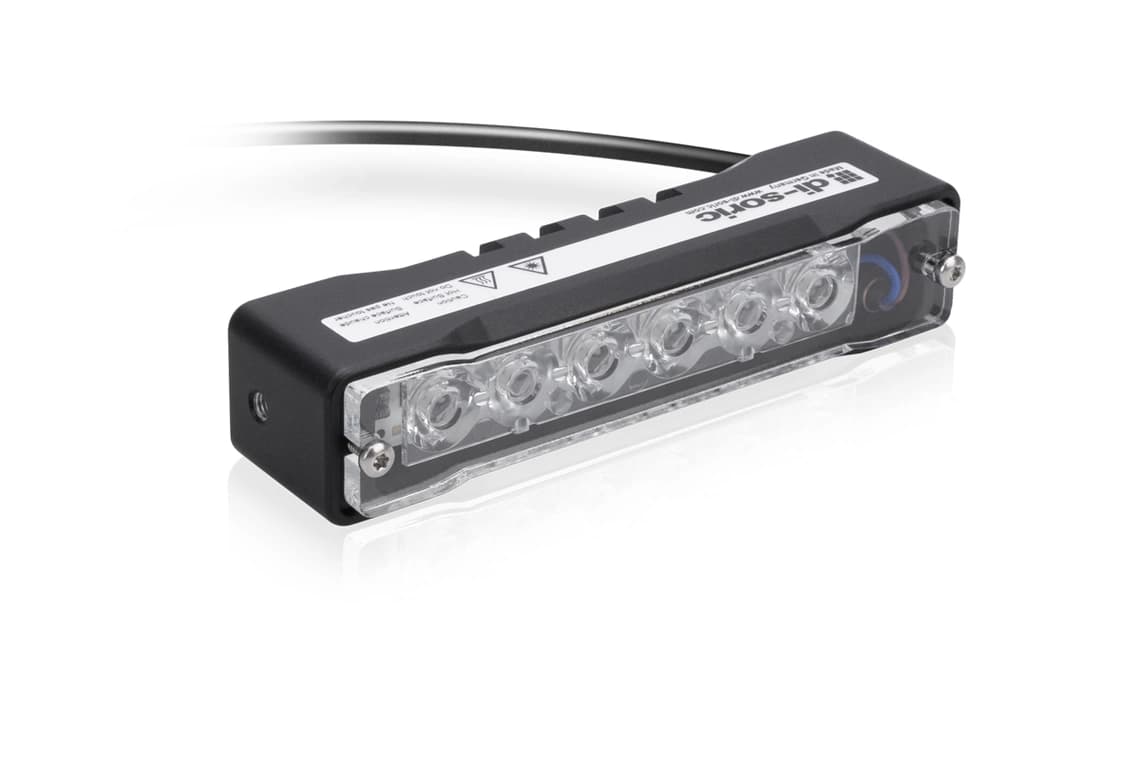

BE-A65-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Name: BE-A65-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision
Brand: Di-soric
SKU: be-a65-g1-k-bs-24-v-dc-supply-class-2-lighting-for-machine-vision
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A65-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Description

Joist light with switchable constant light

BE-A65-G1-K-BS
Article Number: 213569

The barlights in the BE-A series stand out by their high degree of efficiency and effectiveness. With the optical heads, the radiation angle is restricted, so that the best edge contrasts can be achieved in application. The different sizes ensure maximum flexibility in application. The optimal price-to-performance ratio and the technical features guarantee excellent access to applications in the ID reading area or similar tasks.
Robust solid metal aluminum housing
Variable cable outlet with strain relief
High effectiveness due to the latest LED technology
High efficiency due to optics with a small dispersion angle
Optimal price-performance ratio
Industrial-quality M12 connection
New properties can be modeled with filter disks from the accessories
Large assortment of mounting products available as accessories

Collapse all

Service voltage24 V DC (Supply Class 2)

Internal power consumption125 mA (24 V DC)

Power3.0 W (24 V)

Inverse polarity protectionYes

Illuminated area65 x 12 mm

Housing length84 mm

Housing height23.1 mm

Housing width18 mm

Housing materialAluminum (Black, Anodized)

MaterialPMMA, clear (Protection optics)

Weight70 g

Protection classIII, operation on protective low voltage

Risk group (DIN EN 62471)Free group

ApprovalsUL

DesignBarlight

Operating modesStatic

Color selectionNo

Light intensity can be adjustedNo

Scope of deliveryBarlight

Trigger input high levelNo trigger

Trigger input low levelNo trigger

Trigger presetsNo trigger

InterfaceNo

Light sourceLED

ColorRed

Wavelength634 nm

Deflection angle FWHM18°

Light intensity32.5 kLx (100.0 mm) 11.0 kLx (200.0 mm) 1.80 kLx (500.0 mm)

Controlwithout power control

Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm

Ambient temperature during operation0 … +40 °C

Protection typeIP 40

ConnectionPigtail, 0.3 m, M12, 3-pin
