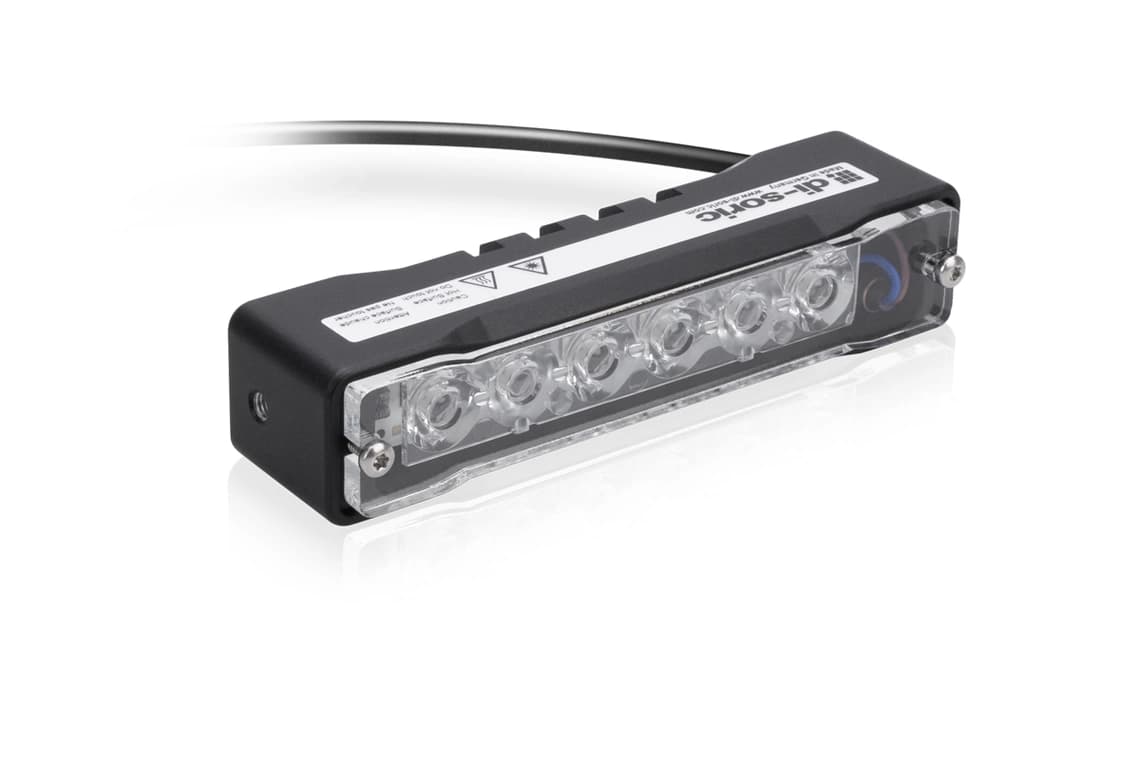

BE-A65-G0-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A65-G0-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

BE-A65-G0-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A65-G0-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
Internal power consumption130 mA (24 V DC)
Power3.1 W (24 V)
Inverse polarity protectionYes
Illuminated area65 x 12 mm
Housing length84 mm
Housing height23.1 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight70 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignBarlight
Operating modesStatic
Color selectionNo
Light intensity can be adjustedNo
Scope of deliveryBarlight
Trigger input high levelNo trigger
Trigger input low levelNo trigger
Trigger presetsNo trigger
InterfaceNo
Light sourceLED
ColorInfrared
Wavelength850 nm
Deflection angle FWHM18°
Controlwithout power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 40
ConnectionPigtail, 0.3 m, M12, 3-pin
