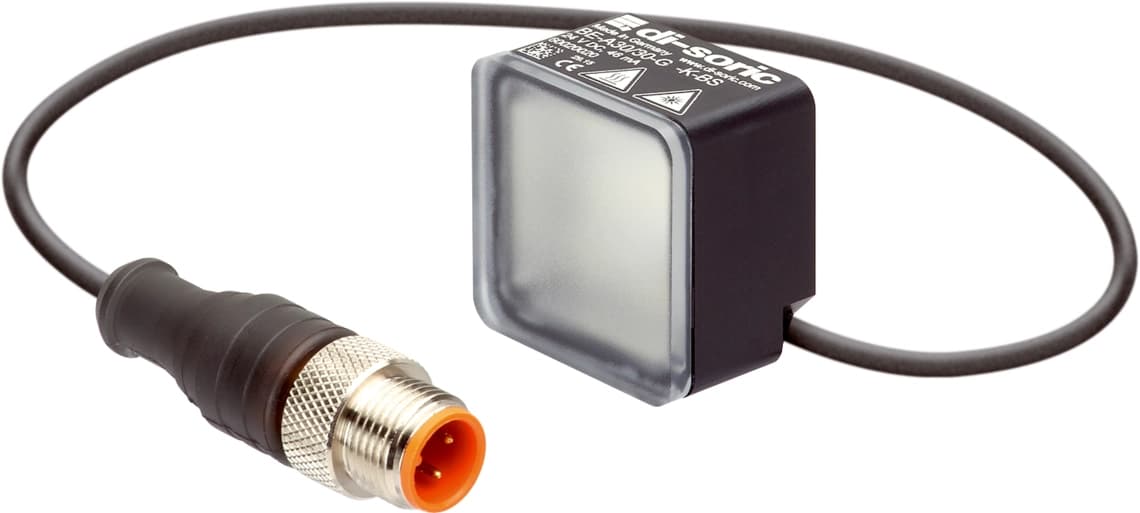

BE-A30/30-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A30/30-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

BE-A30/30-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A30/30-G1-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
Internal power consumption50 mA (24 V DC)
Power1.2 W (24 V DC)
Inverse polarity protectionno
Illuminated area30 x 30 mm
Housing dimensions30 x 30 x 20 mm
Housing length30 mm
Housing height20 mm
Housing width30 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight45 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignBarlight
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM120°
Light intensity1.30 kLx (100.0 mm) 380 Lux (200.0 mm) 180 Lux (300.0 mm)
Controlwithout power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C (Continuous operation)
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 3-pin
Connection cableVK …
