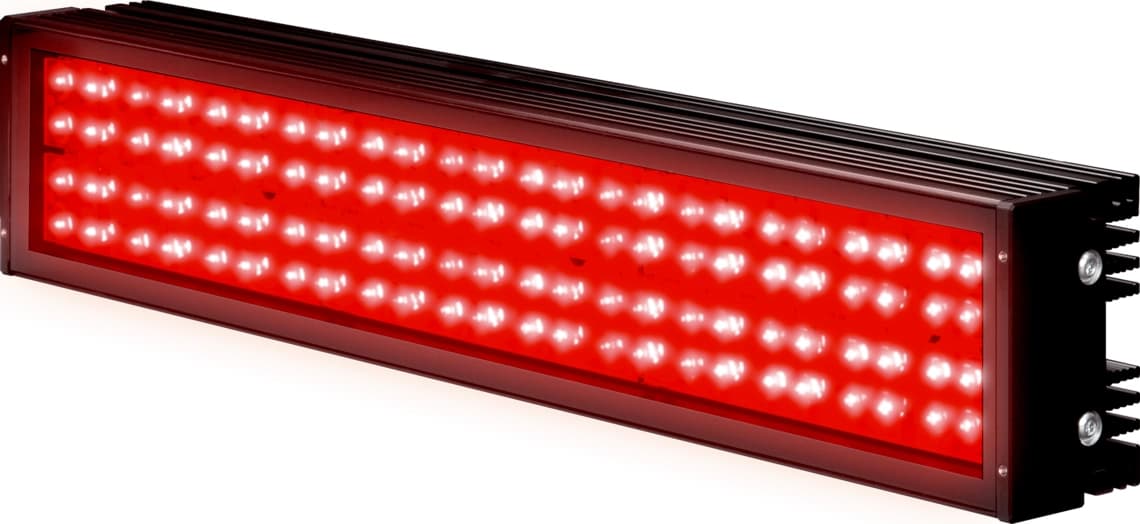

BE-A300-F1-K No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A300-F1-K No constant voltage! Lighting for machine vision

BE-A300-F1-K No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A300-F1-K No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)720 W
Energization factor (in pulse / max.)12
Energization (in pulse / max.)24000 mA
Service voltageNo constant voltage!
Illuminated area295 x 46 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, hardcoated (Protection optics)
Weight1100 g
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignBarlight
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM30°
Light intensity100 kLx (100.0 mm / 100 %) 310 kLx (100.0 mm / 400 %) 515 kLx (100.0 mm / 800 %) 62.0 kLx (200.0 mm / 100 %) 178 kLx (200.0 mm / 400 %) 324 kLx (200.0 mm / 800 %) 24.0 kLx (500.0 mm / 100 %) 66.0 kLx (500.0 mm / 400 %) 115 kLx (500.0 mm / 800 %) 7.50 kLx (1000.0 mm / 100 %) 20.0 kLx (1000.0 mm / 400 %) 38.0 kLx (1000.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
