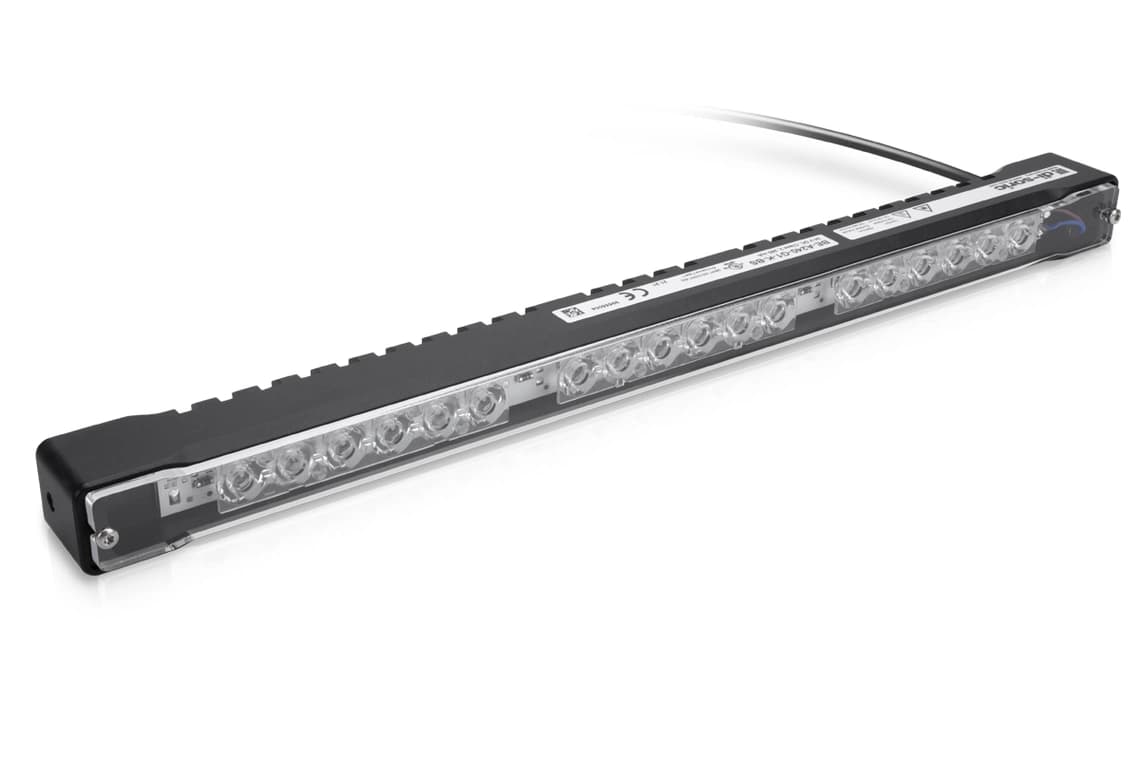

BE-A240-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A240-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

BE-A240-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A240-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
Internal power consumption395 mA (24 V DC)
Power9.5 W (24 V)
Inverse polarity protectionYes
Illuminated area240 x 12 mm
Housing length354 mm
Housing height23.1 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight165 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
DesignBarlight
Operating modesStatic
Color selectionNo
Light intensity can be adjustedNo
Scope of deliveryBarlight
Trigger input high levelNo trigger
Trigger input low levelNo trigger
Trigger presetsNo trigger
InterfaceNo
Light sourceLED
ColorWhite
Wavelength6500 K
Deflection angle FWHM18°
Light intensity74.5 kLx (100.0 mm) 35.0 kLx (200.0 mm) 13.5 kLx (500.0 mm)
Controlwithout power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 40
ConnectionPigtail, 0.3 m, M12, 3-pin
