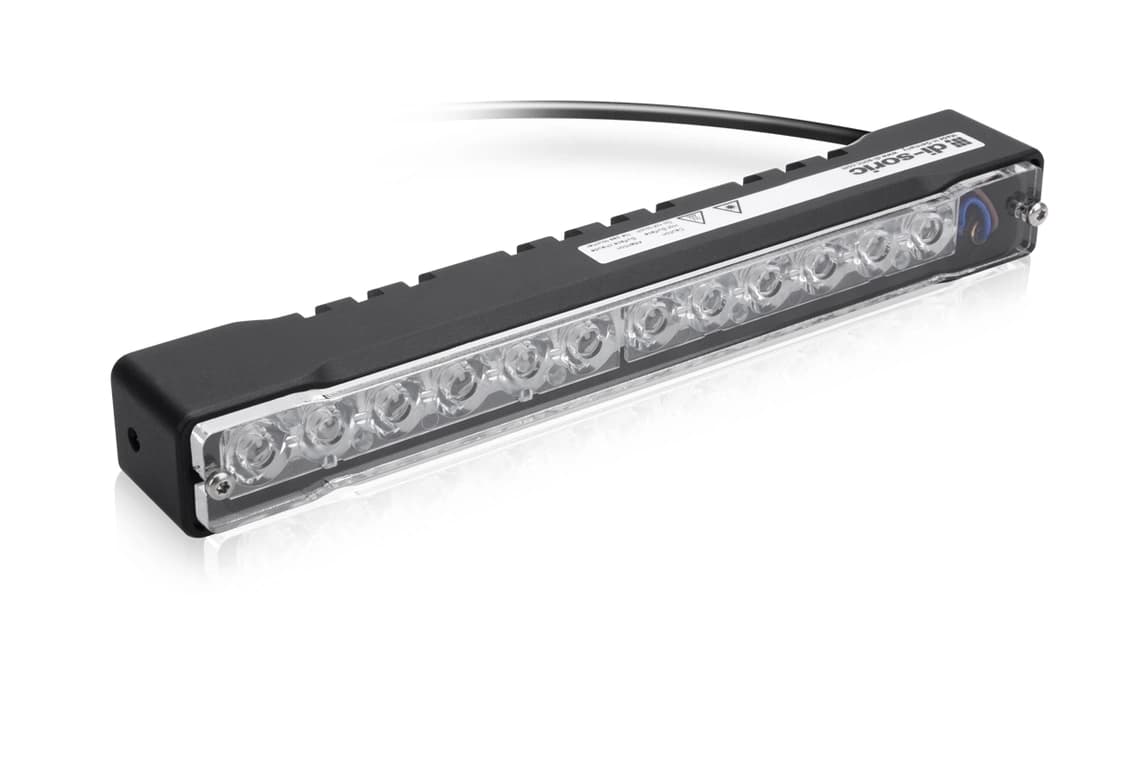

BE-A130-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A130-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

BE-A130-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A130-G5-K-BS 24 V DC (Supply Class 2) Lighting for machine vision

Description

Collapse all
Service voltage24 V DC (Supply Class 2)
Internal power consumption270 mA (24 V DC)
Power6.5 W (24 V)
Inverse polarity protectionYes
Illuminated area130 x 12 mm
Housing length144 mm
Housing height23.1 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA, clear (Protection optics)
Weight105 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
DesignBarlight
Operating modesStatic
Color selectionNo
Light intensity can be adjustedNo
Trigger input high levelNo trigger
Trigger input low levelNo trigger
Trigger presetsNo trigger
InterfaceNo
Light sourceLED
ColorWhite
Wavelength6500 K
Deflection angle FWHM18°
Light intensity73.0 kLx (100.0 mm) 40.0 kLx (200.0 mm) 10.0 kLx (500.0 mm)
Controlwithout power control
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 40
ConnectionPigtail, 0.3 m, M12, 3-pin
