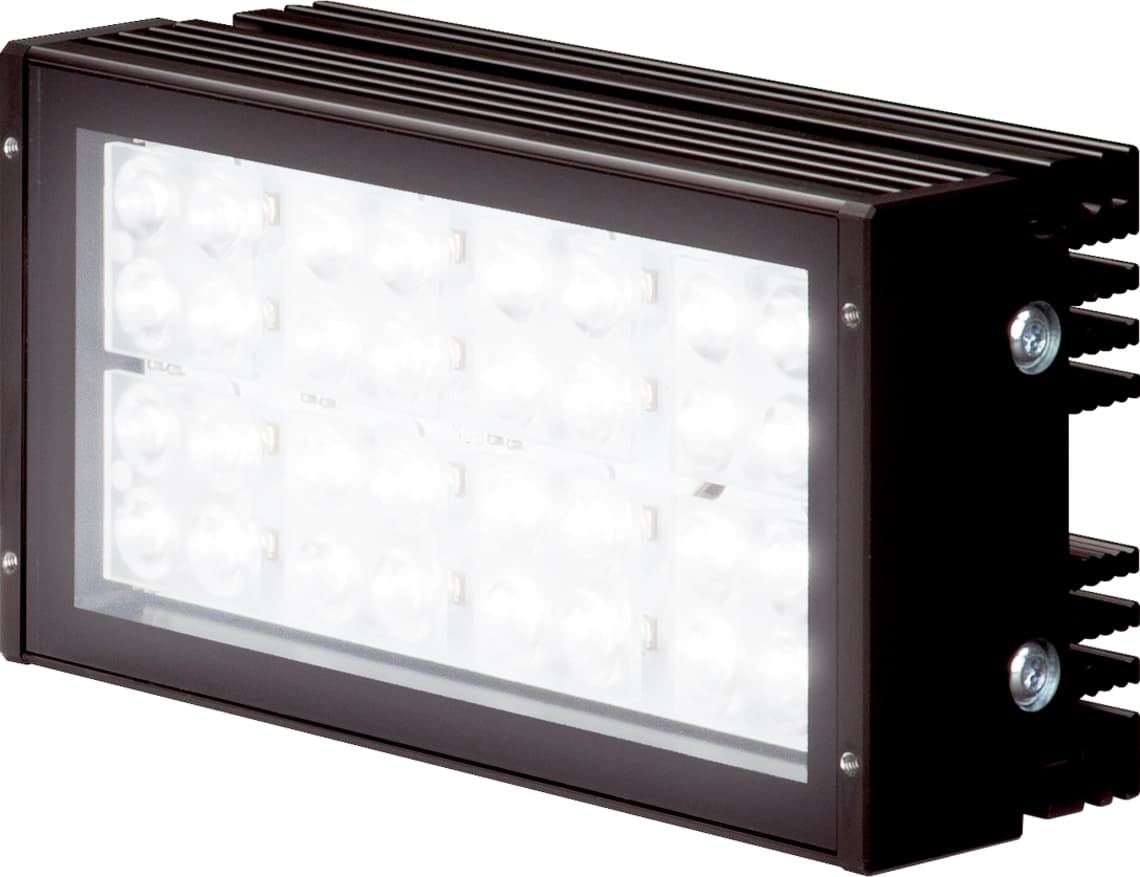

BE-A100-F5-K No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A100-F5-K No constant voltage! Lighting for machine vision

BE-A100-F5-K No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A100-F5-K No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)250 W
Energization factor (in pulse / max.)8
Energization (in pulse / max.)8000 mA
Service voltageNo constant voltage!
Illuminated area96 x 46 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, hardcoated (Protection optics)
Weight450 g
Risk group (DIN EN 62471)Risk group 2
ApprovalsUL
DesignBarlight
Light sourceLED
ColorWhite
Wavelength6000 K
Deflection angle FWHM30°
Light intensity289 kLx (100.0 mm / 100 %) 880 kLx (100.0 mm / 400 %) 1200 kLx (100.0 mm / 800 %) 148 kLx (200.0 mm / 100 %) 430 kLx (200.0 mm / 400 %) 640 kLx (200.0 mm / 800 %) 35.0 kLx (500.0 mm / 100 %) 92.0 kLx (500.0 mm / 400 %) 150 kLx (500.0 mm / 800 %) 9.50 kLx (1000.0 mm / 100 %) 21.0 kLx (1000.0 mm / 400 %) 44.0 kLx (1000.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
