Get more information about BE-A100-F1-K No constant voltage! Lighting for machine vision

Description

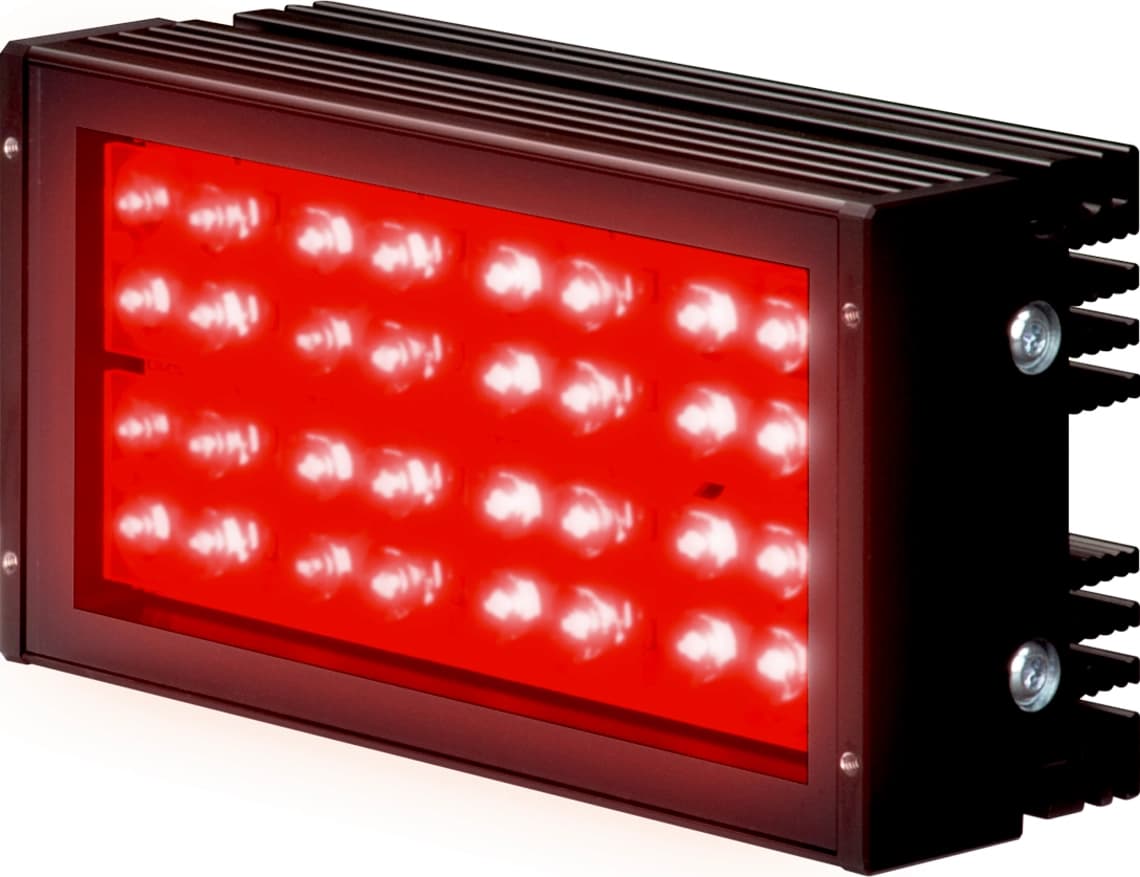

Externally flashable joist light

BE-A100-F1-K
Article Number: 208216

Externally flashable joist lights are suited for operation using a constant current source or a flash controller. They are the ideal solution for very short camera exposure times and therefore for extremely high-speed processes.
High excess current factor
Pulse mode for "freezing" and inspecting moving objects with extremely high illuminance
Long life thanks to intelligent thermal management
Homogeneous luminous field
High protection type
Robust metal housing
Universal mounting options
Scratch-resistant safety screen
Crossbars and attachment optics available as an option

Collapse all
Power consumption (in pulse / max.)240 W
Energization factor (in pulse / max.)8
Energization (in pulse / max.)8000 mA
Service voltageNo constant voltage!
Illuminated area96 x 46 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, hardcoated (Protection optics)
Weight450 g
Risk group (DIN EN 62471)Free group
ApprovalsUL
DesignBarlight
Light sourceLED
ColorRed
Wavelength625 nm
Deflection angle FWHM30°
Light intensity133 kLx (100.0 mm / 100 %) 470 kLx (100.0 mm / 400 %) 850 kLx (100.0 mm / 800 %) 69.0 kLx (200.0 mm / 100 %) 250 kLx (200.0 mm / 400 %) 428 kLx (200.0 mm / 800 %) 14.0 kLx (500.0 mm / 100 %) 52.0 kLx (500.0 mm / 400 %) 96.0 kLx (500.0 mm / 800 %) 5.00 kLx (1000.0 mm / 100 %) 18.0 kLx (1000.0 mm / 400 %) 28.0 kLx (1000.0 mm / 800 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
