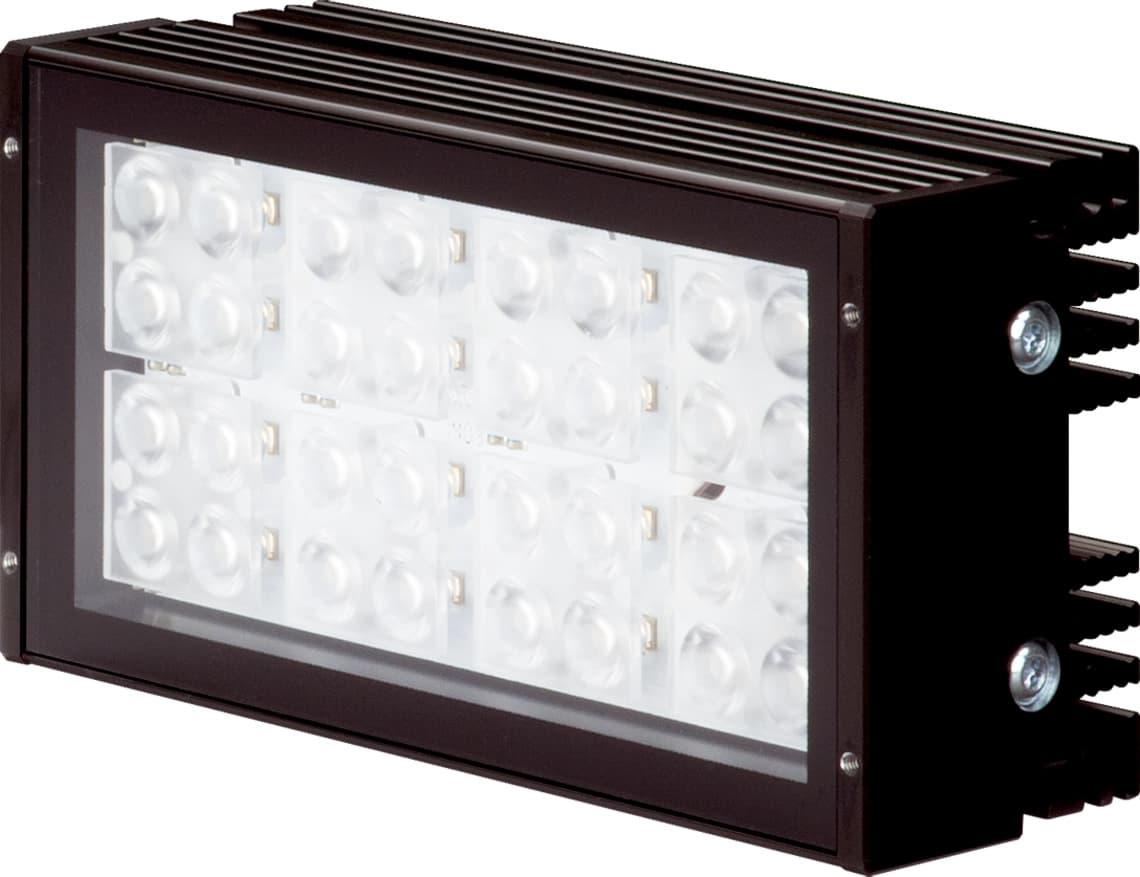

BE-A100-F0-K No constant voltage! Lighting for machine vision

Di-soric Lighting for machine vision Industrial Automation - BE-A100-F0-K No constant voltage! Lighting for machine vision

BE-A100-F0-K No constant voltage! Lighting for machine vision

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about BE-A100-F0-K No constant voltage! Lighting for machine vision

Description

Collapse all
Power consumption (in pulse / max.)290 W
Energization factor (in pulse / max.)9.33
Energization (in pulse / max.)20000 mA
Service voltageNo constant voltage!
Illuminated area96 x 46 mm
Housing materialAluminum (Black, Anodized)
MaterialPolyurethane (Cable) PMMA, hardcoated (Protection optics)
Weight450 g
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
DesignBarlight
Light sourceLED
ColorInfrared
Wavelength850 nm
Deflection angle FWHM30°
Light intensity600000 µW/cm² (100.0 mm / 1300 %) 280000 µW/cm² (200.0 mm / 1300 %) 60000 µW/cm² (500.0 mm / 1300 %) 16000 µW/cm² (1000.0 mm / 1300 %)
ControlFlashable by means of flash controller
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 2.5 m (flying leads, Use only with flash controller!)
