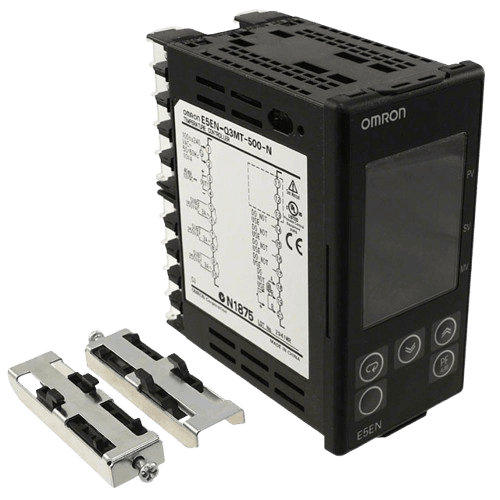

E5EN-Q3MT-500-N

The Omron E5EN-Q3MT-500-N is a reliable digital temperature controller from the E5EN Series (Basic Type), designed for industrial temperature control applications that require stable PID performance and SSR-driven outputs. With its 1/8 DIN (48 × 96 mm) panel-mount form factor, this controller was widely used in automation panels across manufacturing and process industries.

This model supports universal temperature inputs, allowing connection to both thermocouples and resistance temperature detectors, providing flexibility across different processes. The voltage control output is intended for driving solid-state relays (SSR), ensuring fast and reliable switching. Equipped with three auxiliary outputs, it enables alarm signaling and interlock control to enhance system monitoring and safety.

The E5EN-Q3MT-500-N features a 3-level display, allowing simultaneous monitoring of key parameters such as process value and set value. Powered by a wide-range 100–240 VAC supply, it was engineered for continuous industrial operation. Although this model is now obsolete and no longer manufactured, it remains relevant for legacy system maintenance and replacement, with newer E5_C series controllers commonly recommended as substitutes.

---

Specifications

• Brand: Omron
• Model / SKU: E5EN-Q3MT-500-N
• Category: Temperature Controllers
• Series: E5EN Series (Basic Type)
• Controller Type: Digital temperature controller
• Controller Size: 1/8 DIN (48 × 96 mm)
• Input Type: Universal input (thermocouple / resistance thermometer)
• Control Output: Voltage output for driving SSR
• Auxiliary Outputs: Three
• Control Method: PID control, ON/OFF control
• Display Type: 3-level digital display
• Power Supply: 100–240 VAC
• Operating Environment: Industrial-grade for continuous operation
• Product Status: Obsolete / discontinued
• Recommended Replacement: E5_C series controllers (e.g., E5EC series)
• Applications: Industrial heaters, ovens, furnaces, process equipment, legacy automation panels

Why Choose Omron E5EN-Q3MT-500-N?

• Proven PID temperature control for industrial processes
• SSR-ready voltage output for reliable switching
• Universal sensor compatibility for flexible installation
• Multiple auxiliary outputs for alarms and system logic
• Ideal for maintenance and replacement of existing E5EN-based systems
