E5EN-C3MT-500-N

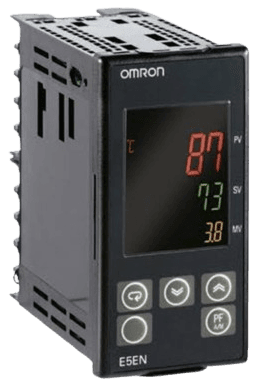

The Omron E5EN-C3MT-500-N is a robust digital temperature controller from the E5EN Series, designed for industrial process control applications that demand reliable performance and precise temperature regulation. Featuring a 1/8 DIN (48 × 96 mm) panel-mount design, this controller was widely used in control panels across manufacturing and process industries.

This model provides a current control output, making it suitable for applications that require analog signal control such as 4–20 mA or 0–20 mA loops. It supports multi-input temperature sensing, including thermocouples and Pt100 resistance temperature detectors, allowing flexible integration into various systems. The controller offers ON/OFF control as well as advanced PID and PID auto-tuning control for stable and accurate temperature management.

Powered by a wide-range 100–240 VAC supply, the E5EN-C3MT-500-N was engineered for continuous operation in demanding industrial environments. Although this model has been discontinued, it remains in use in many legacy installations, and newer Omron controllers from the E5EC Series are commonly recommended as functional replacements.

---

Specifications

• Brand: Omron
• Model / SKU: E5EN-C3MT-500-N
• Category: Temperature Controllers
• Series: E5EN Series
• Controller Type: Digital temperature controller
• Controller Size: 1/8 DIN (48 × 96 mm)
• Mounting Type: Panel mount
• Input Type: Multi-input (thermocouple / Pt100 RTD)
• Control Output: Current output (typically 4–20 mA or 0–20 mA)
• Control Method: ON/OFF control, PID control, PID auto-tuning
• Power Supply: 100–240 VAC
• Generation: N-series
• Operating Environment: Industrial-grade, suitable for harsh environments
• Product Status: Discontinued
• Recommended Replacement: Newer models from the E5EC Series
• Applications: Industrial process control, heaters, furnaces, ovens, automation control panels

Why Choose Omron E5EN-C3MT-500-N?

• Proven reliability in industrial temperature control applications
• Current output suitable for analog control systems
• Supports multiple sensor types for flexible installation
• Accurate PID control with auto-tuning capability
• Ideal for maintenance and replacement of existing E5EN-based systems
