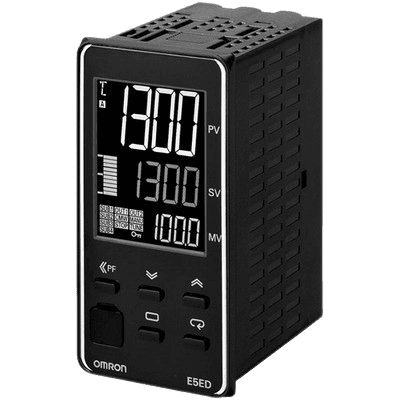

E5ED-RX4A6M-000

Digital temperature controller from the E5ED series in a 1/8 DIN vertical (48 × 96 mm) size.
This model features 4 auxiliary relay outputs, a relay control output, and a detachable screw terminal block with cover for easy wiring and maintenance.
It supports a wide range of thermocouple, RTD, current, and voltage inputs, advanced adaptive control, and a 3-row white backlit LCD, with IP66 front protection for industrial environments.

Specifications

Main function: Temperature controller (Digital)
Product series / family name: E5ED series

Functions:
Digital temperature controller
ON/OFF control or 2-PID control with auto-tuning
Adaptive control
Automatic filter adjustment
Water-cooling output adjustment
Indication data (power ON time monitor, ambient temperature monitor, control output ON/OFF count monitors)
Parameter masking
Operation after power ON
Manual output
Heating / cooling control
Loop burnout alarm
SP ramp
Other alarm functions
Heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
Input digital filter
Robust tuning
PV input shift
Run / stop
Protection functions
Extraction of square root
MV change rate limit
Logic operations
Temperature status display
Simple programming
Moving average of input value
Display brightness setting

Design: 4 auxiliary outputs
Supply voltage (AC): 100–240 Vac (110 / 120 / 200 / 208 / 220 / 230 Vac), 50/60 Hz
Frequency: 50 ms sampling period (20 Hz)

Display:
3 rows × 4-digits (negative transmissive 11-segment LCD with backlight)
18 mm digits height (PV; Present value; white backlight)
11 mm digits height (SV; Setpoint; white backlight)
7.8 mm digits height (MV; Multi-setpoint; white backlight)

Color: Black
Connection type: Detachable screw terminal block (with cover)
Mounting mode: Flush mounting on door

Digital outputs:
1 × digital output (SPST-NO relay contact; 250 Vac / 5 A resistive load) (control output 1)
4 × digital outputs (SPST-NO relay contacts; 250 Vac / 2 A resistive load) (aux. outputs)

Analog inputs:
1 × analog input (Main process input)
Thermocouple types K, J, T, E, L, U, N, R, S, B, C/W, or PL II
RTD Pt100, JPt100
IR temperature sensor
4–20 mA, 0–20 mA
1–5 Vdc, 0–5 Vdc, 0–10 Vdc

Measurement accuracy:
±0.3% of indication value or ±1 °C whichever is greater (thermocouple input)
±0.2% of indication value or ±0.8 °C whichever is greater (Platinum RTD input)
±0.2% F.S. ±1 digit max. analog input

Degree of protection: IP66

Dimensions: 1/8 DIN vertical (48 × 96 mm)
Net height: 96 mm
Net width: 48 mm
Net depth: 66 mm
Door cut-out height: 91 mm
Door cut-out width: 44 mm
Embedding depth: 62 mm

Ambient air temperature for operation: -10…+55 °C
Ambient air temperature for storage: -25…+65 °C

EAN code: 4549734126403

Compliant with standard(s):
cULus
UL61010-1 / CSA C22.2 No. 61010-1
KC Mark
EN / IEC61010-1
RCM
CE marking

Location of origin: China
Degree of pollution: 2

Benefits:
Optimizes control by detecting status changes
Improves productivity and quality
Adaptive control for automatic system optimization
Specialized functions for packaging machines and water-cooled extruders
Detailed indication data for operation and maintenance
Draw-out structure for easier servicing
