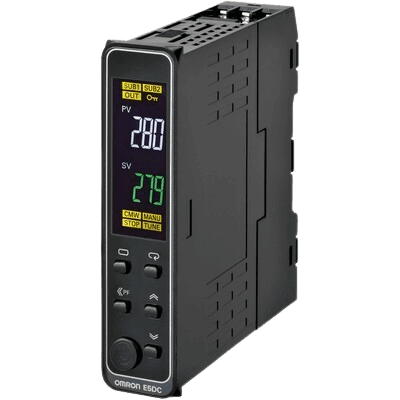

E5DC-RX2DSM-000

Digital temperature controller / meter with 2 auxiliary outputs, designed for DIN rail mounting and compact control panels. This 24 Vac/Vdc supply version features a slim 22.5 mm width, pre-mounted removable terminal block, and high-speed sampling for precise temperature control. It supports a wide range of sensor inputs and provides reliable relay outputs, making it ideal for integration with PLCs and HMIs in industrial automation systems.

Specifications

Main function: Temperature controller (Digital)

Product series / family name: E5DC series

Functions:
Digital temperature controller / meter
ON/OFF control or 2-PID control with auto-tuning
Manual output
heating/cooling control
loop burnout alarm
SP ramp
other alarm functions
heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
input digital filter
self-tuning
robust tuning
PV input shift
run/stop
protection functions
extraction of square root
MV change rate limit
logic operations
temperature status display
simple programming
moving average of input value
display brightness setting
simple transfer output and work bit message

Design:
2 aux. outputs
24Vac/dc supply version
with pre-mounted term. blk.

Supply voltage (AC): 24Vac (50/60Hz)
Supply voltage (DC): 24Vdc

Frequency: 50ms sampling period (20Hz)

Display:
2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
8.5mm digits height (PV; Present value; white backlight)
8mm digits height (SV; Setpoint; white backlight)

Connection type: screw connections (main and term. unit)

Mounting mode: DIN rail mounting

Digital outputs:
1 x digital output (SPST-NO rly. contact; 250Vac/3A resistive load) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/2A resistive load) (aux. outputs)

Analog inputs:
1 x analog input
(Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II
RTD Pt100; JPt100
IR temp. sens.
4-20mA; 0-20mA
1-5Vdc; 0-5Vdc; 0-10Vdc)
(Main process input)

Measurement accuracy:
+/-0.3% of indication value or +/-1°C whichever is the greater (thermocouple input)
+/-0.2% of indication value or +/-0.8°C whichever is the greater (Platinum RTD input)
+/-0.2% F.S. +/-1 digit max. analog input

Degree of protection: IP66

Net Height: 96 mm
Net Width: 22.5 mm
Net Depth: 85 mm

Ambient air temperature for operation: -10...+55 °C
Ambient air temperature for storage: -25...+65 °C

Order code / Manufacturer SKU: E5DC-RX2DSM-000
Equivalent to: E5DCRX2DSM000
EAN code: 4548583422070

Manufacturer product status: Commercialized

Compliant with standard(s):
UL61010-1
CSA C22.2 No. 61010-1
IEC61010-1
EN55011 Group1 class A
EN61326-1
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-11
ICC
CE marking
Lloyd standards

Location of origin: China
Degree of pollution: 2

Benefits

The E5DC mounts to DIN track and is ideal for connections to HMIs and PLCs.
Slim body at 85 x 22.5 mm (D x W) fits narrow control panels.
Removable terminal block simplifies maintenance and replacement.
High-speed 50 ms sampling for fast temperature response.
Easy PLC integration with programless communications.
Clear white PV display (8.5 mm height) for easy monitoring, setup, and alarm checking.
