E5DC-CX2ASM-000

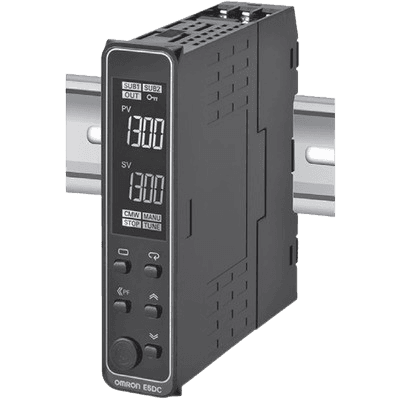

The Omron E5DC-CX2ASM-000 is a compact digital temperature controller designed for precise temperature regulation in industrial and automation environments. It features universal sensor input, dual auxiliary outputs, a linear control output, and a slim 22.5 mm DIN rail mountable design with pre-mounted screw terminal block for ease of installation. The controller supports ON/OFF or 2-PID control with auto-tuning and includes advanced display and filtering functions to optimize performance.

Key Features

• Compact 22.5 mm wide DIN rail mountable controller with pre-mounted screw term. blk.
• Universal sensor input (Thermocouple / RTD / IR / Analog)
• 1 x Linear analog control output (4-20 mA / 0-20 mA)
• 2 x Auxiliary relay outputs (SPST-NO, 250 VAC / 2 A)
• 2 rows × 4 digits LCD display with backlight (8.5 mm PV / 8 mm SV)
• 50 ms sampling period and multi-setpoint functions
• DIN rail mounting and IP66 front protection

Specifications

Main function: Digital temperature controller (PID / ON/OFF)
Product series / family name: E5DC series
Design: 2 aux. outputs, linear control output, pre-mounted terminal block
Supply voltage (AC): 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Frequency: 50 ms sampling period (20 Hz)
Display:
• 2 rows × 4 digits (negative transmissive 11-segment LCD with backlight)
• 8.5 mm digits height (PV; Present value; white backlight)
• 8 mm digits height (SV; Setpoint; white backlight)

Connection types: Screw terminal block (main and term. unit)
Mounting mode: DIN rail mounting (22.5 mm width)

Digital outputs:
2 × digital outputs (SPST-NO rly. contacts; 250Vac/2A resistive load) (aux. outputs)

Control output:
1 × analog output (Linear; 4-20 mA / 0-20 mA DC) (control output 1)

Analog inputs:
1 × analog input (Thermocouple; RTD Pt100 / JPt100; IR sensor; 4-20 mA; 0-20 mA; 1-5 Vdc; 0-5 Vdc; 0-10 Vdc) (Main process input)

Measurement accuracy:
±0.3% of indication or ±1°C whichever greater (thermocouple input)
±0.2% of indication or ±0.8°C whichever greater (Platinum RTD)
±0.2% F.S. ±1 digit max. analog input

Degree of protection: IP66
Net Height: 96 mm
Net Width: 22.5 mm
Net Depth: 85 mm

Ambient air temperature for operation: -10…+55 °C
Ambient air temperature for storage: -25…+65 °C

Order code / Manufacturer SKU: SKUE5DC-CX2ASM-000 / E5DCCX2ASM000
Manufacturer product status: Commercialized
Equivalent to: E5DCCX2ASM000
EAN code: 4548583422223

Compliant with standard(s):
UL61010-1
CSA C22.2 No. 61010-1
IEC61010-1
EN55011 Group1 class A
EN61326-1
EN61000-4-2 /-3 /-4 /-5 /-6 /-11
ICC
CE marking
Lloyd standards

Location of origin: China
Degree of pollution: 2

Benefits

• Slim 22.5 mm body ideal for space-limited control panels.
• Easy DIN rail mounting with pre-mounted terminal block.
• High-speed sampling (50 ms) for responsive temperature control.
• Universal input for thermocouples, RTDs, IR sensors, and analog signals.
• Simple front panel operation with clear dual display.
• Easy PLC/HMI integration and optional software setup.
