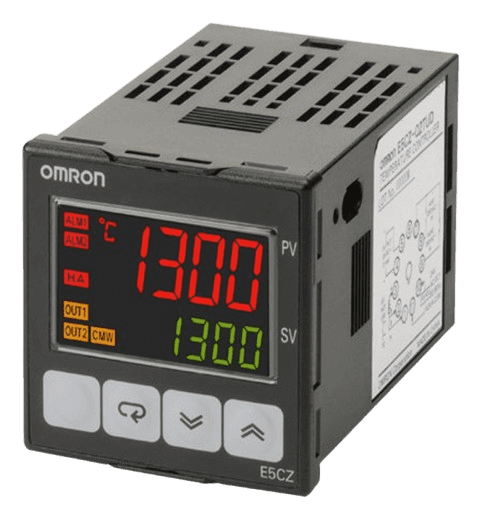

E5CZ-Q2MT

The Omron E5CZ-Q2MT is a compact and high-performance digital temperature controller from the E5CZ Series, designed for precise and stable temperature control in industrial automation environments. Built for fast response and consistent regulation, this controller is well suited for applications such as ovens, furnaces, heaters, and process control panels where accuracy and reliability are critical.

This model features a voltage output specifically intended for driving solid-state relays (SSR), ensuring quiet operation and long service life. It supports a wide range of temperature sensors, including thermocouples, platinum resistance thermometers, and infrared sensors, offering flexibility across diverse applications. With support for ON/OFF control as well as advanced 2-PID control, the E5CZ-Q2MT delivers stable temperature performance even under varying process conditions.

The controller is easy to configure using digital front-panel keys and is designed to operate reliably in harsh industrial environments. With two alarm outputs and support for optional expansion units, it provides enhanced monitoring, safety, and system integration capabilities.

---

Specifications

• Brand: Omron
• Model / SKU: E5CZ-Q2MT
• Category: Temperature Controllers
• Series: E5CZ Series
• Product Type: Digital temperature controller
• Input Type: Thermocouple, platinum resistance thermometer, infrared sensor
• Control Method: 2-PID control or ON/OFF control
• Control Output: Voltage output (for driving SSR)
• Output Signal (Analog): 4–20 mA DC / 0–20 mA DC
• Load Resistance: Up to 600 Ω
• Output Resolution: Approx. 2,700
• Number of Alarm Outputs: 2
• Option Unit: Option unit can be mounted
• Setting Method: Digital setting using front panel keys
• Power Supply Voltage: 100–240 VAC
• Sampling Period: 250 ms
• Ambient Operating Temperature: –10 to 55 °C (no condensation or icing)
• Ambient Operating Humidity: 25% to 85%
• Storage Temperature: –25 to 65 °C (no condensation or icing)
• Dimensions (L × W × H): 7.8 cm × 4.8 cm × 4.8 cm
• Weight: 0.2 kg
• Shipping Weight: 2 kg
• Applications: Industrial heaters, ovens, furnaces, process automation panels, temperature-regulated manufacturing systems

Why Choose Omron E5CZ-Q2MT?

• SSR-ready voltage output for reliable and silent switching
• Wide sensor compatibility for flexible application design
• Dual alarm outputs for enhanced process safety
• Stable temperature control with ON/OFF or 2-PID modes
• Trusted Omron reliability for industrial temperature control
