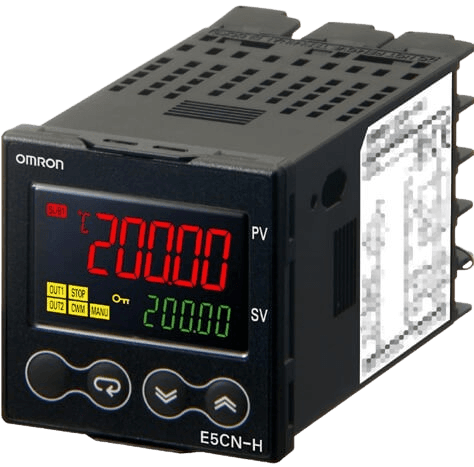

E5CN-HT

The Omron E5CN-HT is a compact and advanced programmable digital temperature controller from the E5CN Series, designed for applications that require high-precision temperature control with complex temperature profiles. With its 48 × 48 mm (1/16 DIN) size, it fits easily into space-constrained control panels while delivering powerful functionality typically found in larger controllers.

This model features a high-resolution 5-digit display with 0.01 °C resolution, enabling extremely accurate monitoring and control. The E5CN-HT supports up to 256 program segments (8 programs × 32 segments), making it ideal for processes that demand multi-step temperature ramping and soaking, such as heat treatment and material processing.

Equipped with universal sensor input compatibility, the controller works with thermocouples, platinum resistance thermometers, and analog current/voltage signals. Advanced functions such as PID auto-tuning, heater burnout alarms, and optional communication interfaces enhance reliability, safety, and system integration. The IP66-rated front panel ensures dependable operation in harsh industrial environments.

Although the E5CN-HT was scheduled for discontinuation in March 2025, it remains widely used in existing installations and is commonly required for maintenance, replacement, and legacy system support.

---

Specifications

• Brand: Omron
• Model / SKU: E5CN-HT
• Category: Temperature Controllers
• Series: E5CN Series
• Controller Size: 48 × 48 mm (1/16 DIN)
• Controller Type: Programmable digital temperature controller
• Programming Capability: 8 programs × 32 segments (256 segments total)
• Display Type: High-resolution 5-digit display
• Display Resolution: 0.01 °C
• Input Type: Universal input (thermocouple, Pt, analog current/voltage)
• Control Method: PID control with auto-tuning, ON/OFF control
• Control Output Options: Relay, voltage (SSR drive), current (model dependent)
• Alarm Functions: Heater burnout alarm supported
• Communications: Infrared front port, RS-485 (optional)
• Ingress Protection: IP66 (front panel)
• Power Supply: 100–240 VAC or 24 VAC/VDC (model dependent)
• Configuration Software: CX-Thermo
• Product Status: Discontinued (from March 2025)
• Applications: Heat treatment systems, furnaces, ovens, environmental chambers, industrial process control with temperature profiles

Why Choose Omron E5CN-HT?

• Advanced multi-segment temperature programming capability
• High-precision control with 0.01 °C resolution
• Universal sensor compatibility for flexible system design
• Robust IP66-rated front panel for industrial environments
• Ideal for legacy systems requiring programmable temperature control
