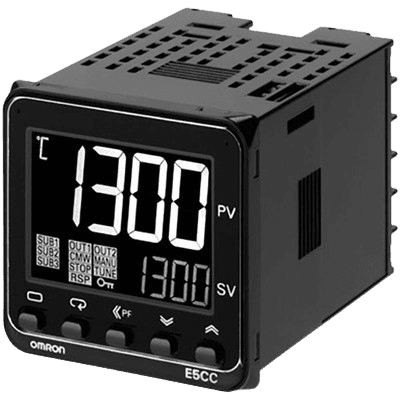

E5CD-CX2ABM-004

Digital temperature controller with 2 aux. outputs + 2 dry contact event inputs
1/16 DIN (48x48mm)
100-240Vac supply version
OMRON (E5CD-B series)
RS-485 communication
Push-In Plus spring connections

1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; C/W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog output (Linear; 4-20mA; 0-20mA DC) (control output 1)
2 x digital inputs (dry contact) (event inputs)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/2A resistive load) (aux. outputs)

2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
14.9mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; white backlight)

Supply voltage 100Vac-240Vac (50/60Hz)
Flush mounting on door
IP66
Equivalent to E5CDCX2ABM004

Main function: Temperature controller (Digital)
Product series / family name: E5CD-B series
Functions:
Digital temperature controller
ON/OFF control or 2-PID control with auto-tuning
Adaptive control
Automatic filter adjustment
Water-cooling output adjustment
Indication data (power ON time monitor, ambient temperature monitor, control output ON/OFF count monitors)
Parameter masking
Operation after power ON
Manual output
Heating/cooling control
Loop burnout alarm
SP ramp
Other alarm functions
Heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
Input digital filter
Robust tuning
PV input shift
Run/stop
Protection functions
Extraction of square root
MV change rate limit
Logic operations
Temperature status display
Simple programming
Moving average of input value
Display brightness setting

Design:
2 aux. outputs
2 dry contact event inputs
100-240Vac supply version

Supply voltage (AC): 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Frequency: 50ms sampling period (20Hz)

Display:
2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
14.9mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; white backlight)

Color: Black
Connection type: Push-In Plus spring connections
Communication protocol: RS-485
Mounting mode: Flush mounting on door

Digital inputs:
2 x digital inputs (dry contact) (event inputs)

Digital outputs:
2 x digital outputs (SPST-NO rly. contacts; 250Vac/2A resistive load) (aux. outputs)

Analog inputs:
1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; C/W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)

Analog outputs:
1 x analog output (Linear; 4-20mA; 0-20mA DC) (control output 1)

Measurement accuracy:
+/-0.3% of indication value or +/-1°C whichever is the greater (thermocouple input)
+/-0.2% of indication value or +/-0.8°C whichever is the greater (Platinum RTD input)
+/-0.2% F.S. +/-1 digit max. analog input

Degree of protection: IP66

Dimensions: 1/16 DIN (48x48mm)
Net Height (mm): 48 mm
Net Width (mm): 48 mm
Net Depth (mm): 71.4 mm
Door cut-out height: 45 mm
Door cut-out width: 45 mm

Ambient air temperature for operation: -10...+55 °C
Ambient air temperature for storage: -25...+65 °C

Order code / Manufacturer SKU:
E5CD-CX2ABM-004
E5CDCX2ABM004

EAN code: 4549734148009

Compliant with standard(s):
cULus
UL61010-1 / CSA C22.2 No.61010-1
KC Mark
EN/IEC61010-1
RCM
CE marking

Location of origin: China
Embedding depth: 67.4 mm
Degree of pollution: 2

Benefits:
Optimize control by detecting status changes.
Easily satisfy both productivity and quality.
Models with Push-In Plus technology added to lineup.
Automatic optimization of control for changes in systems (Adaptive Control).
Functions specialized for packaging machines (Temperature Sensors for Packaging Machines and Automatic Filter Adjustment).
Function specialized for water-cooled extruders (Water-cooling Output Adjustment).
Indication data (Power ON Time; Ambient Temperature and Output ON/OFF Count).
Basic performance is same as the E5[]C standard models.
Draw-out structure for easy maintenance.
(Screw terminal blocks only)
